AUO 10.4 Inch TFT LCD Panel G104SN02 V2 G104STN01.0 800x600 20 Pins LVDS

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

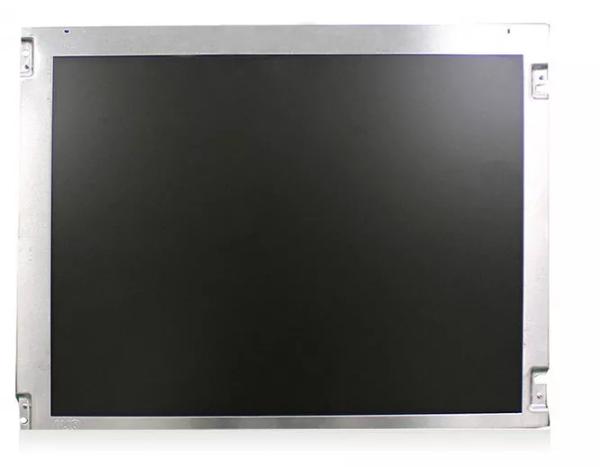

AUO 10.4 Inch TFT LCD Panel G104SN02 V2 G104STN01.0 800x600 20 Pins LVDS

Brand Name : AUO

Model Number : G104SN02 V2

Place of Origin : TaiWan

MOQ : 500

Price : pls contact us

Payment Terms : Western Union,PAPLY,BANK TRANSFER

Supply Ability : 500

Delivery Time : 5-8 work days

Packaging Details : standard Packaging

Panel Brand : AUO

Panel Model : G104SN02 V2

Panel Size : 10.1

Contact Now

Original AUO 10.4 inch TFT LCD Panel replacement for G104SN02 V2, G104STN01.0 with 800x600 and 20 pins LVDS
item
value
Type
TFT
Display Size
10.4 inch
Supplier Type
Agent
Place of Origin
Taiwan, China
Brand Name
AUO
G104STN01.0 Size
10.4 inch
Resolution
800(RGB)x600 SVGA
Active Area
211.2(H) x 158.4(V)mm
Outline
243.0(H) x 184.0(V) x 6.5(D)mm
Pixel Pitch
0.264 x 0.264mm
Arrangement
R.G.B. Vertical Stripe
Treatment
Anti-glare , Hardness 3H
Nominal Input Voltage VDD
+3.3V
Support color
262K/16.2M , 50% NTSC
View Angle
80/80/60/70
Brightness
400 cd/m²
Contrast Ratio
700:1
Backlight
WLED, 50K hours, with LED driver
Interface
LVDS (1 ch, 6/8-bit) , 20 pins
Operating Temp.
-30 ~ +80 (°C)
Storrage Temp.
-30 ~ +80 (°C)
Response time
10/5ms
Display mode
TN, Normally white
Width:Height
4:3
Weight
365g
RoHS Compliance
RoHS Compliancecc

We also have other industrial LCD panels, pls contact to us for the further information

Panel Model Brand Size
X139BLB01.0 AUO 1.39"
H381DLN01.0 AUO 3.8"
H497TLB01.4 AUO 5.0"
G173HW01 V0 CELL AUO 17.3"
T320HVN05.A CELL AUO 31.5"
B080EAN04.1 CELL AUO 8.0"
T500HVN08.8 CELL AUO 50"
H546DAN01.5 AUO 5.5"
H546DAN08.0 AUO 5.5"
B080XAN03.5 AUO 7.9"
B080XAN03.2 AUO 7.9"
H499TAN05.0 AUO 5.0"
H520DAN01.1 AUO 5.2"

Application Of AUO LCD Panel

  1. Office Electronic Equipment: money counting machine, office phone set, copying mechine...
  2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens...
  3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale...
  4. Medical Devices: sphygmomanometer...
  5. Sports Equipment: running machine...
  6. Industrial Control Equipment: remote control, punched-card machine...
  7. Information Terminal Display: POS...
  8. Security Products: elevator controller, electronic indicator...

Advantage Of AUO LCD Panel

  1. We are professional LCD module manufacture in China with precise and advanced equipments.
  2. High quality Control with CE,ROHS and so on approved.
  3. More than 10 years of industry experience and involved main markets all over the world
  4. Dedicated and professional sales team will offer you 24 hours online and immediate service
  5. OEM and ODM support,12 months warranty for all of our products
  6. Our mission is to help our customers achieve success, then fulfill our both dreams

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

AUO 10.4 Inch TFT LCD Panel G104SN02 V2 G104STN01.0 800x600 20 Pins LVDS


Product Tags:

10.4 inch TFT LCD Panel



TFT LCD Panel G104SN02 V2



LVDS 10.4 inch LCD Panel


China AUO 10.4 Inch TFT LCD Panel G104SN02 V2 G104STN01.0 800x600 20 Pins LVDS factory
