8.4 Inch LCM NEC LCD Panel 800×600 Industrial NL8060BC21-11F
NEC NL8060BC21-11F Mechanical Details
| Pixel Features : | Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.071×0.213 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.213×0.213 (H×V) [119PPI] |
| Mechanical Size : | Active Area(mm) 170.4(H) × 127.8(V) Bezel Area(mm) 174.0(H) × 131.4(V) Outline Dim.(mm) 200(H) × 152(V) Depth(mm) 8.2±0.5 |
| Outline Features : | Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type |
| Mounting : | Face mounting holes (4-Ф2.8) on left, right bezel |
| Other Spec : | Weight 260/280g (Typ./Max.) Treatment Clear, Hard coating (3H) |
- Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
-
NEC NL8060BC21-11F Optical Details
| Basic Information : | Luminance(cd/m²) 800 (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 3/15 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate Wx:0.313; Wy:0.329 Display Colors 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio 40% sRGB 57% coverage Adobe RGB 42% coverage DCI-P3 42% coverage Rec.2020 30% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility Sunlight Readable Transmissivity - |
- Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Product Tags:
|
|

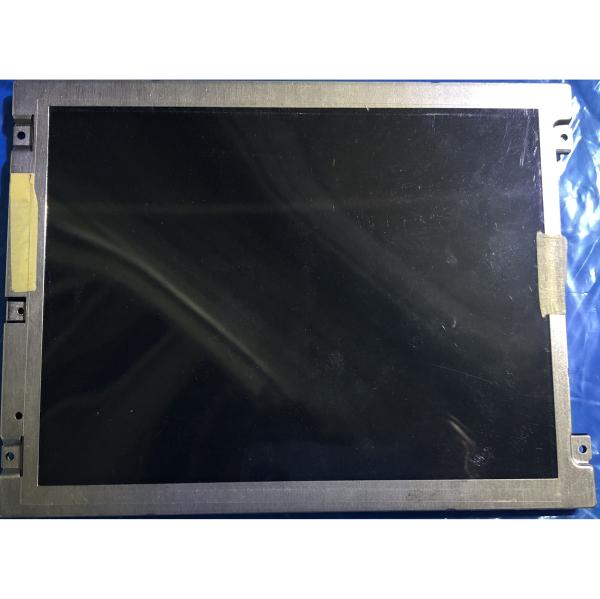

8.4 Inch LCM NEC LCD Panel 800×600 Industrial NL8060BC21-11F Images
|
