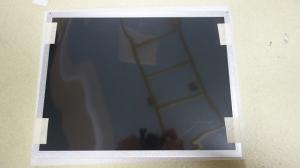

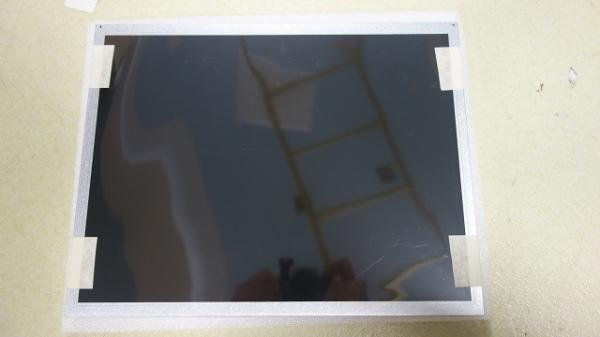

6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection
G150XTN06.B AUO 15" LCM 1024×768 Without Touchscreen And Industrial,outdoor High Brightness
AUO G150XTN06.B Optical Details
Basic Information :
Luminance
800 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
5.7/2.3 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/70/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
84% coverage
Adobe RGB
63% coverage
DCI-P3
63% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
- Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top
AUO G150XTN06.B Mechanical Details
Pixel Features :
Number of Pixel
1024(RGB)×768, XGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.099×0.297 mm
Pixel Pitch(W×H)
0.297×0.297 mm [85PPI]
Physical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
326.5(W)×253.5(H) mm
Bezel Opening
311.9(W)×236.85(H) mm
Overall Depth
10.0 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.00Kgs (Max.)
Surface
Antireflection
- Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
