Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel

N&S ELECTRONIC CO., LIMITED
Contact Now

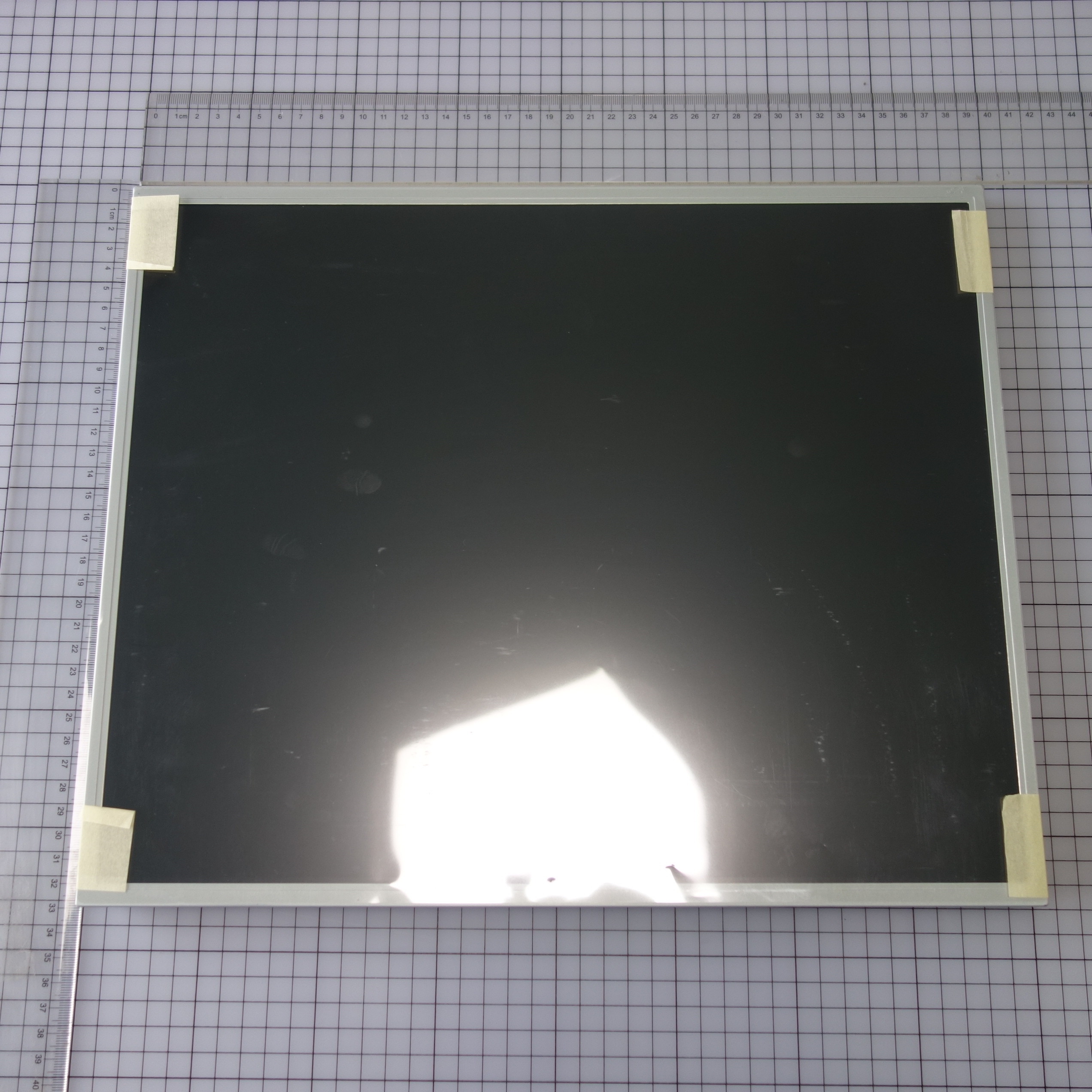

Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel

  • 1
  • 2

Brand Name : AUO

Model Number : G190EG02 V1

Place of Origin : taiwan

MOQ : 1

Price : pls contact us

Payment Terms : T/T, Western Union,PAPLY,BANK TRANSFER

Supply Ability : 1000

Delivery Time : 5-8 work days

Packaging Details : standard Packaging

Brand : AUO

Model : G190EG02 V1

Diagonal Size : 19.0 inch

Pixel Format : 1280(RGB)×1024 [SXGA] 86PPI

Type : a-Si TFT-LCD, LCM

Weight : 1.75Kgs (Typ.)

Luminance : 300 cd/m² (Typ.)

Interface Type : LVDS (2 ch, 8-bit) , 30 pins Connector

Light Source : WLED , 50K hours , With LED Driver

Environment : Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel

Description Of AUO LCD Panel

G190EG02 V1 (Alias: G190EG02 V.1) is a 19.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of G190EG02 V1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO.

Quick Details

Type a-Si TFT-LCD , LCM
Model G190EG02 V1
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 60 °C
Weight 1.75Kgs (Typ.)
Color Temperature 6485K

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

M185XTN01.3 CELL AUO 6.0"
M185XTN01.3 CELL AUO 10.1"
M185XTN01.3 CELL AUO 5.0"
M185XTN01.3 CELL AUO 50"
H546DAN01.0 AUO 50"
H546DAN01.0 AUO 19.5"
H347QTN01.0 AUO 3.5"
H515DAN01.0 AUO 5.2"
H499TAN03.1 AUO 5.0"
G150XG03 V3 CELL AUO 15.0"
B080XAN03.1 CELL AUO 7.9"
H572DAN01.2 AUO 5.7"

AUO G190EG02 V1 Mechanical Features

Panel Size : 19.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1280(RGB)×1024, SXGA RGB Vertical Stripe 0.098×0.294 mm 0.294×0.294 mm [86PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
376.32×301.056 mm 380.32×305.06 mm 396×324 mm 18.9 (Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 5:4 (W : H) Landscape type -
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Features : Panel Cover Weight Surface
- 1.75Kgs (Typ.) Antiglare

AUO G190EG02 V1 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
300 cd/m² (Typ.) MVA, Normally Black, Transmissive 2000:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 15/5 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
69% 92% 71%
DCI-P3 Coverage Rec.2020 Coverage Remarks
72% 52% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.25/1.33 (Typ./Max.)(9 points) Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel

Application Of AUO LCD Panel G190EG02 V1

1. Gaming

2. Marine

3. Medical Equipment

4. ATM

5. Industrial

6. Medical

7. Transport

Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams

FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

Medical Equipment G190EG02 V1 19 Inch AUO LCD PanelMedical Equipment G190EG02 V1 19 Inch AUO LCD Panel
