Medical Imaging Digital Lcd Display 23.8 Inch 1920×1080 TFT-LCD G238HAN01.0

Brand Name : AUO

Model Number : G238HAN01.0

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal

Supply Ability : 500PCS

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box

Size : 23.8 Inch

Resolution : 1920×1080

Screen Type : LCM, a-Si TFT-LCD

Luminance : 250 cd/m² (Typ.)

Contrast Ratio : 1000 : 1 (Typ.) (TM)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Good View at : Symmetry

Backlight : 17S4P WLED , 30K hours , No Driver

Used for : Medical Imaging

Touchscreen : Without

Contact Now

1 General Description

This specification applies to the 23.8 inch wide Color a-Si TFT-LCD Module G238HAN01.0. The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors. The input interface is dual channel LVDS and this module doesn’t contain an driver board for backlight.

2. Display Characteristics

ITEMS	Unit	SPECIFICATIONS
Screen Diagonal	[mm]	604.70 (23.81”)
Active Area	[mm]	527.04(H) x 296.46(V)
Pixels H x V	-	1920(x3) x 1080
Pixel Pitch	[um]	274.5 (per one triad) ×274.5
Pixel Arrangement	-	R.G.B. Vertical Stripe
Display Mode	-	AHVA, normally Black
White Luminance ( Center )	[cd/m²]	250 (Typ.)
Contrast Ratio	-	1000 (Typ.)
Response Time	[msec]	14 (Typ., G/G)
Power Consumption (LCD Module + Backligh unit)	[Watt]	18.4 (Typ.)
Weight	[Grams]	2280+/-80
Outline Dimension	[mm]	543.0(H) x 317.4(V) x 11.2(D) (Typ.)
Electrical Interface	-	Dual channel LVDS
Support Color	-	16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment	-	Anti-Glare, 3H
Temperature Range Operating Storage (Shipping)	[^oC] [^oC]	0 to +50 -20 to +60
RoHS Compliance	-	RoHS Compliance
TCO Compliance	-	TCO 6.0 Compliance

3.Absolute Maximum Rating of Environment

Symbol	Description	Min.	Max.	Unit	Remark
TOP	Operating Temperature	0	+50	[^oC]	*Note 2-1*
TGS	Glass surface temperature (operation)	0	+65	[^oC]	*Note 2-1* Function judged only
HOP	Operation Humidity	5	90	[%RH]	*Note 2-1*
TST	Storage Temperature	-20	+60	[^oC]
HST	Storage Humidity	5	90	[%RH]

4.Service

5.FAQ

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

Product Tags:

auo lcd screen

auo lcd display

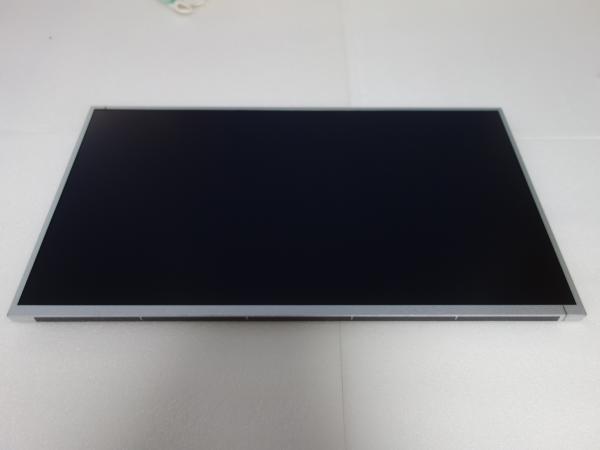

Medical Imaging Digital Lcd Display 23.8 Inch 1920×1080 TFT-LCD G238HAN01.0 Images
