22.9 Inch AUO LCD Panel 1920×165 TFT-LCD G229HAN01.0 Original For Stretched Bar

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

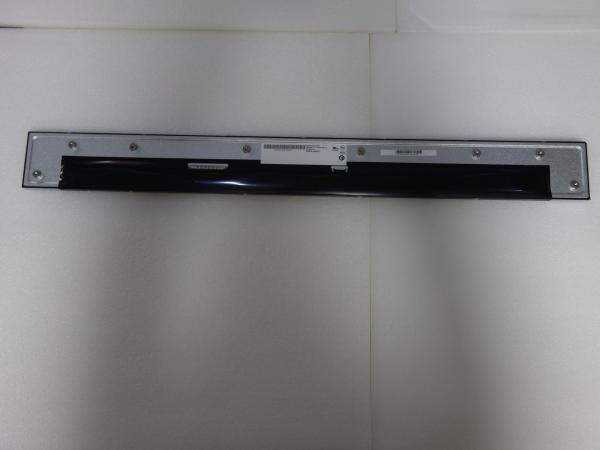

22.9 Inch AUO LCD Panel 1920×165 TFT-LCD G229HAN01.0 Original For Stretched Bar

  • 1
  • 2
  • 3

Brand Name : AUO

Model Number : G229HAN01.0

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal

Supply Ability : 500PCS

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box

Size : 22.9 Inch

Type : a-Si TFT-LCD, LCM

Luminance : 500 cd/m² (Typ.)

Contrast Ratio : 1000:1 (Typ.) (TM)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Operating Mode : AHVA, Normally Black, Transmissive

Light Source : WLED , 50K hours , With LED Driver

Frame Rate : 60Hz

Touch Panel : Without

Designed For : Stretched Bar

Contact Now

1.General Description

This specification applies to the 22.9 inch-wide Color AHVA (IPS-like) TFT-LCD Module G229HAN01.0.
The display supports the FHD [1920(H) x 165(V)] screen format and 16.7M colors (True 8 bit). All input signals are LVDS interface comaptible.

2.Display Characteristics

ITEMSUnitSPECIFICATIONS
Screen Diagonal[mm]581.01(22.9”)
Active Area[mm]578.88 (H) x 49.7475 (V)
Pixels H x V 1920x165
Pixel Pitch[um]301.5 × 301.5
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode AHVA mode, Normally black
White Luminance ( Center )[cd/m2]500 cd/m2 (Typ.)
Contrast Ratio 1000 (Typ.)
Optical Response Time[msec]25ms
Nominal Input Voltage VDD[Volt]5V (Typ)
Power Consumption (VDD line + LED line)[Watt]7.53W
Weight[Grams]460 (Typ)
Physical Size[mm]587.08 (H) x 62.05 (V) x10.21 (D) Typ
Electrical Interface Single LVDS
Support Color 16.7M colors, True 8 bit
Surface Treatment Anti-Glare, 3H
RoHS Compliance RoHS Compliance

Temperature Range Operating

Storage (Shipping)

[oC]

[oC]

0~ 50

-20~ 60


3.Optical Characteristics

ItemUnitConditionsMin.Typ.Max.Note

Viewing Angle

[degree]

Horizontal (Right) CR >10 (Left)

89

89

-
-



2

Vertical (Up) CR > 10 (Down)

89

89

-
-

Contrast ratio Normal Direction8001000-3

Response Time

[msec]

Raising Time (TrR) 13


4

Falling Time (TrF) 12
Raising + Falling 25



Color / Chromaticity Coordinates (CIE)

 Red xTBDTBDTBD






5

Red yTBDTBDTBD
Green xTBDTBDTBD
Green yTBDTBDTBD
Blue xTBDTBDTBD
Blue yTBDTBDTBD

Color Coordinates (CIE) White

 White xTBDTBDTBD
White yTBDTBDTBD
Central Luminance[cd/m2] 400500 6
Luminance Uniformity[%] 7075 7
Color Gamut% 72


4.Materials
4.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used, they will be reviewed and approved by the responsible AUO toxicologist.

4.2 Flammability
All components including electrical components that do not meet the flammability grade UL94-V1 in the module will complete the flammability rating exception approval process.
The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability rating will be printed on the printed circuit board.

22.9 Inch AUO LCD Panel 1920×165 TFT-LCD G229HAN01.0 Original For Stretched Bar
22.9 Inch AUO LCD Panel 1920×165 TFT-LCD G229HAN01.0 Original For Stretched Bar
