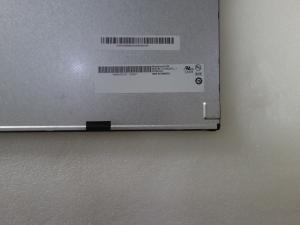

15 Inch LCM A-Si TFT Industrial Lcd Screen 1024×768 Resolution G150XAN01.2 Original

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Brand Name : AUO

Model Number : G150XAN01.2

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal

Supply Ability : 500PCS

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box

Size : 15 Inch

Resolution : 1024×768

Luminance : 500 (Typ.)(cd/m²)

Pixel Number : 1024(RGB)×768 (XGA)

Arrangement : RGB Vertical Stripe

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Response : 25 (Typ.)(Tr+Td) ms

Color Depth : 16.2M 60% NTSC

Backlight : WLED , 50K hours , With LED Driver

Touchscreen : Without

Contact Now

1.AUO G150XAN01.2 Mechanical Details

Pixel Features :	Pixel Format	1024(RGB)×768 [XGA]	Dot Pitch	0.099×0.297 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.297×0.297 mm (H×V)
Mechanical Size :	Display Area	304.128×228.096 mm (H×V)	Bezel Area	309.9×236.3 mm (H×V)
Mechanical Size :	Outline Dim.	326.5×2535 mm (H×V)	Outline Depth	6.8 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style	-
Holes & Brackets :	Side mounting holes (4-M2) on left, right bezel
Other Features :	Weight	660g (Max.)	Surface	Antiglare, Hard coating (3H)

2.AUO G150XAN01.2 Optical Details

Basic Information :	Brightness	500 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	AHVA, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.2M (6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	60%	sRGB	78% coverage
	Adobe RGB	62% coverage	DCI-P3	62% coverage
	Rec.2020	44% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
