Dual Channel LVDS AUO LCD Panel 19'' 1280×1024 G190EAN01.0 For Medical Imaging

Brand Name : AUO

Model Number : G190EAN01.0

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box

Size : 19 Inch

Resolution : 1280×1024

Luminance : 300 (Typ.)(cd/m²)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Contrast Ratio : 1000 : 1 (Typ.) (TM)

Color Depth : 16.7M 72% NTSC

Backlight : 9S6P WLED , 50K hours , With LED Driver

Touchscreen : Without

Contact Now

1. General Description

G190EAN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit, and a backlight system.
The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and 16.7M colors. All input signals are 2-channel LVDS interface compatible

2.Display Characteristics

Items	Unit	Specifications
Screen Diagonal	[mm]	482.6 (19.0" )
Active Area	[mm]	376.32 (H) x 301.06 (V)
Pixels H x V		1280(x3) x 1024
Pixel Pitch	[mm]	0.294 (per one triad) x 0.294
Pixel Arrangement		R.G.B. Vertical Stripe
Display Mode		Normally Black
White Luminance	2 [cd/m ]	300 (center, Typ) @ 80mA
Contrast Ratio		1000 : 1 (Typ)
Optical ResponseTime	[msec]	25 (Typ, on/off)
Nominal Input Voltage VDD	[Volt]	+5.0 V
Power Consumption	[Watt]	LED: 14.4 (W) + LVDS: 3.5 (W) (typ)
Weight	[Grams]	1600 (TYP)
Physical Size (H x V x D)	[mm]	396 (H) x 324 (V) x 17.0 (D) (Typ)
Electrical Interface		Dual channel LVDS
Surface Treatment		Anti-Glare treatment
Support Color		16.7M colors
Temperature Range Operating Storage (Non-Operating)	o [ C] o [ C]	0 to +50 -20 to +60
RoHS Compliance		RoHS Compliance

3.Optical Characteristics

Item	Unit	Conditions	Min.	Typ.	Max.	Note
Viewing Angle	[degree]	Horizontal (Right) CR = 10 (Left)	75 75	89 89	-	1
Viewing Angle	[degree]	Vertical (Up) CR = 10 (Down)	75 75	89 89	-	1
Luminance Uniformity	[%]	9 Points	75	80	-	2, 3
Optical Response Time	[msec]	Rising	-	13	18	4, 6
		Falling	-	12	17
		Rising + Falling	--	25	35
Color / Chromaticity Coordinates (CIE)		Red x Red y	0.601 0.292	0.651 0.342	0.701 0.392	4
		Green x Green y	0.269 0.567	0.319 0.617	0.369 0.667
		Blue x Blue y	0.095 0.010	0.145 0.060	0.195 0.110
		White x White y	0.263 0.279	0.313 0.329	0.363 0.379
White Luminance (At LED= 80mA)	2 [cd/m ]		240	300	-	4
Contrast Ratio			700	1000	-	4
Cross Talk (At 60Hz)	[%]		-	-	1.5	5

Product Tags:

auo display panel

auo lcd screen

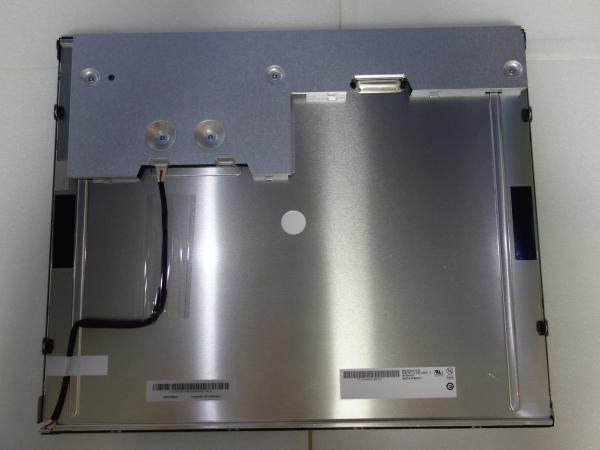

Dual Channel LVDS AUO LCD Panel 19'' 1280×1024 G190EAN01.0 For Medical Imaging Images
