23.8 Inch LCM AUO LCD Panel 1920×1080 Resolution G238HAN01.2 Without Touchscreen

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Brand Name : AUO

Model Number : G238HAN01.2

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : AUO

Model Name : G238HAN01.2

Screen Size : 23.8 inch

Screen Type : LCM , a-Si TFT-LCD

Refresh Rate : 60Hz

Touchscreen : Without

Contact Now

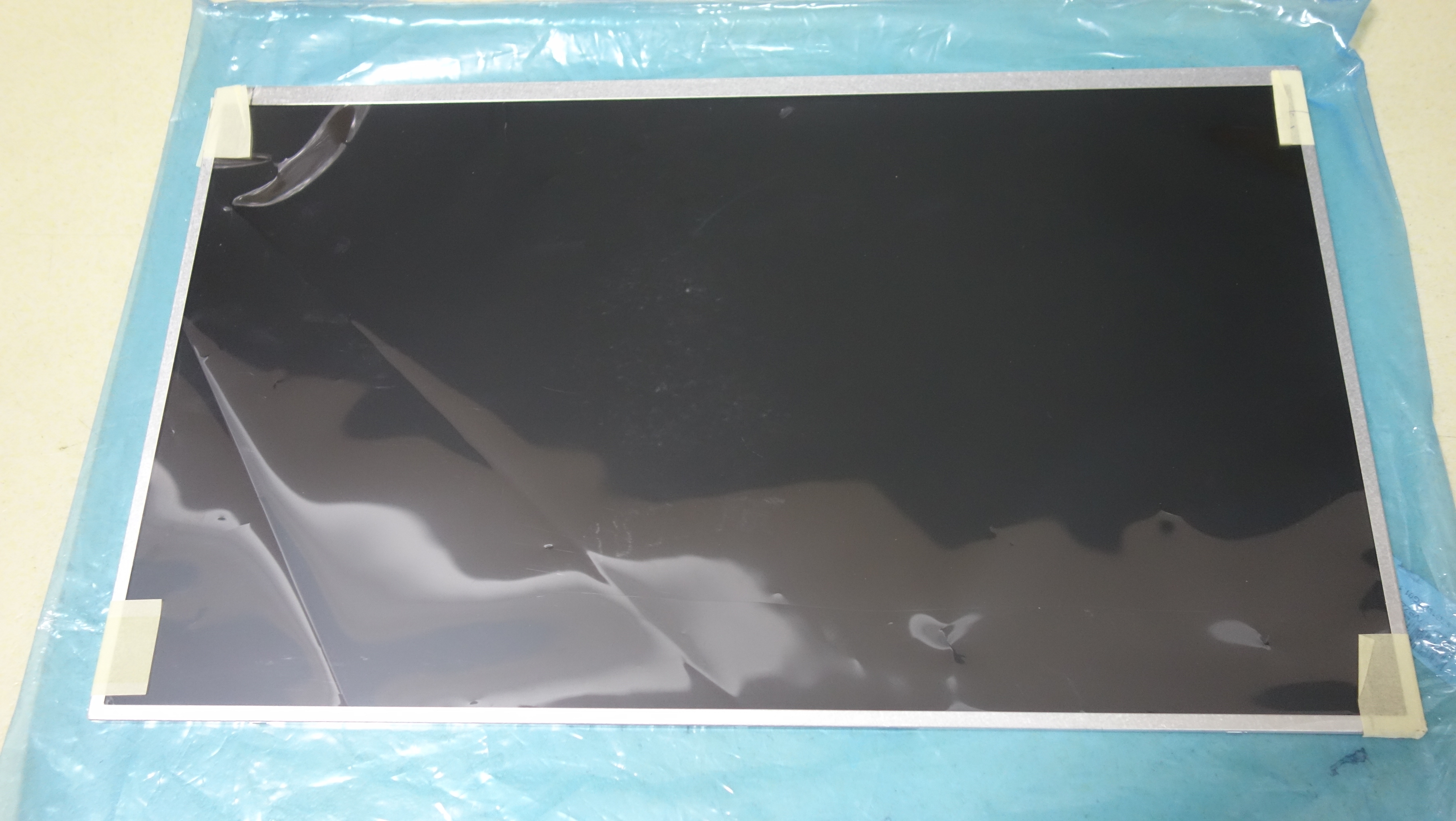

G238HAN01.2 AUO 23.8 inch LCM 1920×1080 LCD screen

AUO G238HAN01.2 Mechanical Details

Pixel Features :	Resolution	1920(RGB)×1080, FHD	Dot Pitch(mm)	0.0915×0.2745 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.2745×0.2745 (H×V)
Mechanical Size :	Active Area(mm)	527.04(H) × 296.46(V)	Bezel Area(mm)	530.2(H) × 299.6(V)
Mechanical Size :	Outline Dim.(mm)	543(H) × 317.4(V)	Depth(mm)	8.4/11.65 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	-
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	2.30Kgs (Typ.)	Treatment	Antiglare, Hard coating (3H)

Basic Information :	Luminance(cd/m²)	400 (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	AHVA, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	14 (Typ.)(G to G)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Gamut	83% NTSC (CIE1931)	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)

We also have other industrial LCD panels, pls contact to us for the further information
