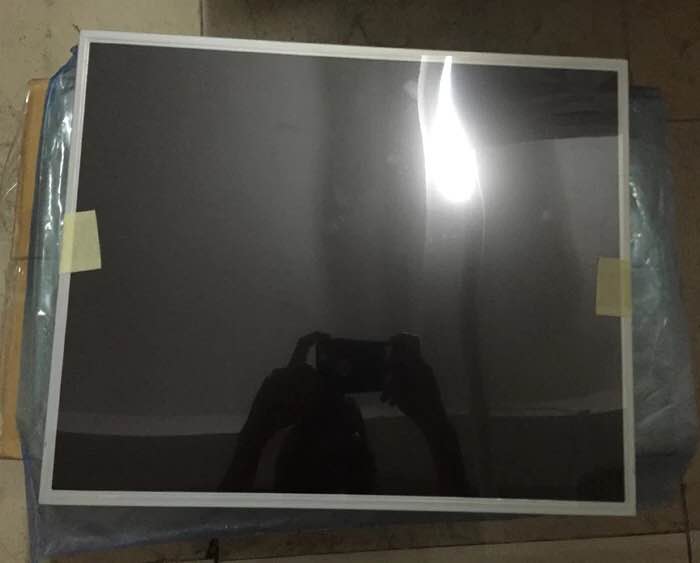

60Hz Frame Rate AUO LCD Panel G190EG02 V2 19 Inch LCM 1280×1024 Touch Screen

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Brand Name : AUO

Model Number : G190EG02 V2

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Brand : AUO

Model : G190EG02 V2

Diagonal Size : 19.0 inch

Type : a-Si TFT-LCD , LCM

Frame Rate : 60Hz

Touch Panel : Without

Contact Now

G190EG02 V2 AUO 19 inch LCM 1280×1024 Touch screen

AUO G190EG02 V2 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	300 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	15/5 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	MVA, Normally Black, Transmissive	2000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Gamut	Display Colors	White Coordinate
Dispaly Color :	70% NTSC (CIE1931)	16.7M (8-bit)	X:0.313; Y:0.329
White Variation :	1.25/1.33 (Typ./Max.)(9 points)

AUO G190EG02 V1 Mechanical Features

Panel Size :	19.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1280(RGB)×1024 [SXGA]	RGB Vertical Stripe	0.294×0.294	0.098×0.294
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	376.32(H) × 301.056(V)	380.32(H) × 305.06(V)	396(H) × 324(V)	18.9 (Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	5:4 (H:V)	-
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	1.75Kgs (Typ.)	-	Antiglare

AUO G190EG02 V1 Electronics Features

We also have other industrial LCD panels, pls contact to us for the further information
