60Hz AUO LCD Panel G320ZAN01.1 32 Inch LCM 3840×2160 Without Touch Panel

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

60Hz AUO LCD Panel G320ZAN01.1 32 Inch LCM 3840×2160 Without Touch Panel

  • 1
  • 2
  • 3

Brand Name : AUO

Model Number : G320ZAN01.1

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Brand : AUO

Model : G320ZAN01.1

Diagonal Size : 32.0 inch

Type : a-Si TFT-LCD, LCM

Frame Rate : 60Hz

Touch Panel : Without

Contact Now

G320ZAN01.1 AUO 32 inch LCM 3840×2160 LCD display

AUO G320ZAN01.1 Optical Details

Basic Information : Luminance 700 cd/m² (Typ.) Contrast Ratio 1350:1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 8/10 (Typ.)(Tr/Td) ms
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode AHVA, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 1.07B (8-bit + Hi-FRC)
Gamut 100% Adobe RGB White Variation 1.28 (Max.)(9 points)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -

AUO G320ZAN01.1 Mechanical Details

Pixel Features : Number of Pixel 3840(RGB)×2160, UHD Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0615×0.1845 mm Pixel Pitch(W×H) 0.1845×0.1845 mm
Physical Size : Active Viewing 708.48(W)×398.52(H) mm Overall Dim. 727.3(W)×424.5(H) mm
Bezel Opening 714.48(W)×404.52(H) mm Overall Depth 20.48±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:09 Shape Style -
Fixation : Rear mounting holes
Other Detail : Mass 4.63±0.46Kgs Surface Antiglare

AUO G320ZAN01.1 Electronics Details

Refresh Rate : 60Hz
Reverse Scan : No

We also have other industrial LCD panels, pls contact to us for the further information

60Hz AUO LCD Panel G320ZAN01.1 32 Inch LCM 3840×2160 Without Touch Panel60Hz AUO LCD Panel G320ZAN01.1 32 Inch LCM 3840×2160 Without Touch Panel


Product Tags:

auo lcd screen



auo lcd display


China 60Hz AUO LCD Panel G320ZAN01.1 32 Inch LCM 3840×2160 Without Touch Panel factory

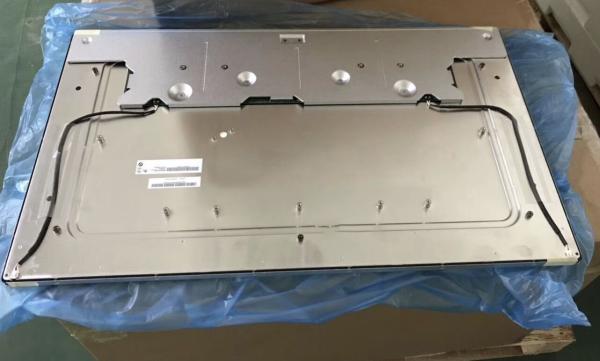

60Hz AUO LCD Panel G320ZAN01.1 32 Inch LCM 3840×2160 Without Touch Panel Images
