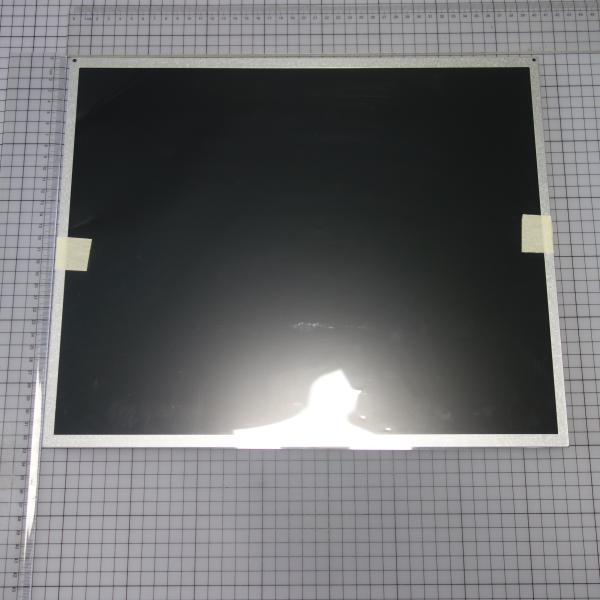

G190ETN01.4 Auo Touch Panel , Anti Glare Lcd Screen 19 Inch LCM 1280×1024

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Brand Name : AUO

Model Number : G190ETN01.4

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Brand : AUO

Model : G190ETN01.4

Diagonal Size : 19.0 inch

Type : a-Si TFT-LCD, LCM

Frame Rate : 60Hz

Touch Panel : Without

Contact Now

G190ETN01.4 AUO 19 inch LCM 1280×1024 Touch screen

Panel Model	G190ETN01.4
Panel Brand	AUO
Descrition	a-Si TFT-LCD ,19.0 inch, 1280×1024
Panel Type	a-Si TFT-LCD
Display Mode	TN, Normally White, Transmissive
Active Area	376.32×301.06 mm
Outline	396×324×13.38 mm
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typ.)
Display Colors	16.7M (6-bit + Hi-FRC) , CIE1931 90%
Response Time	7/3 (Typ.)(Tr/Td)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency	60Hz
Lamp Type	4 strings WLED Embedded (LED Driver)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins
Input Voltage	5.0V (Typ.)

G190ETN01.4 Basic Information

Dot Resolution	1280(RGB)×1024 (SXGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	86 PPI
Aspect Ratio	5:4 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.098×0.294 mm (H×V)
Pixel Pitch	0.294×0.294 mm (H×V)
Weight	1.80Kgs (Typ.)
Surface	Antiglare, Hard coating (3H)
Active Area	376.32×301.06 mm (H×V)
Bezel Area	379.72×304.46 mm (H×V)
Outline Dimension	396×324 mm (H×V)
Outline Depth	13.38 (Max.) mm
Holes & Brackets	Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait	Landscape type
Touch Panel	Without

We also have other industrial LCD panels, pls contact to us for the further information
