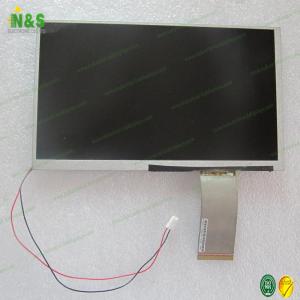

HSD090IDW1-A00 9.0 inch Normally White Outline 210.7×126.4 mm Surface Antiglare, Hard coating (3H)
HSD090IDW1-A00 Basic Information
| Panel Model |
HSD090IDW1-A00 |
| Panel Brand |
HannStar |
| Descrition |
a-Si TFT-LCD ,9.0 inch, 800×480 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Vibration Resistance |
2.9G (28.4 m/s²) |
| Remarks |
DE/SYNC mode selectable; FPC length 73mm; Lamp cable length 85mm |
HSD090IDW1-A00 Mechanical Features
| Dot Resolution |
800(RGB)×480 (WVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
104 PPI |
| Aspect Ratio |
16:9 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.0825×0.2335 mm (H×V) |
| Pixel Pitch |
0.2475×0.2335 mm (H×V) |
| Weight |
240g (Typ.) |
| Surface |
Antiglare, Hard coating (3H) |
| Active Area |
198×112.08 mm (H×V) |
| Bezel Area |
201.1×115.15 mm (H×V) |
| Outline Dimension |
210.7×126.4 mm (H×V) |
| Outline Depth |
5.3±0.3 mm |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
HSD090IDW1-A00 Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Display Color |
262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut |
47% NTSC (CIE1931) |
| Response Time |
5.5/10.5 (Typ.)(Tr/Td) |
| Viewing Angle |
70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
6 o'clock |
| White color Chromaticity |
Wx:0.310; Wy:0.330 |
| White Variation |
1.43 (Max.)(9 points) |
| Sunlight Readable |
N |
