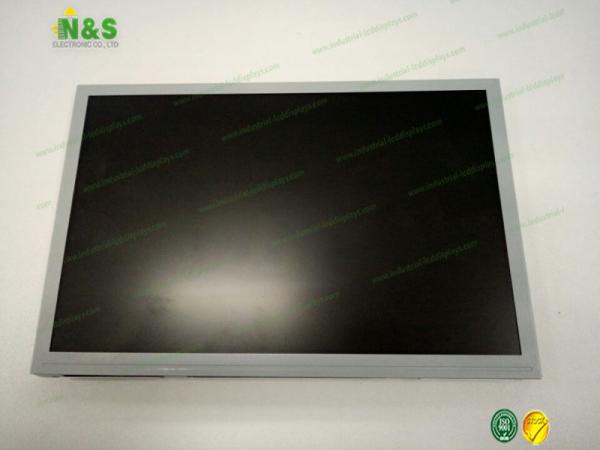

Normally Black 12.1 inch TCG121XGLPBPNN-AN40 TFT LCD Module Kyocera Active Area 245.76×184.32 mm
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Here comes our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| F-55472GNBJ-LW-AGN |
Kyocera |
2.8" |
128×64 |
| F-55472GNBJ-LW-ACN |
Kyocera |
2.8" |
128×64 |
| F-55471GNFJ-SLW-AMN |
Kyocera |
5.2" |
240×64 |
| F-55471GNBJ-LW-ANN |
Kyocera |
5.2" |
240×64 |
| F-51553GNBJ-LW-AGN |
Kyocera |
2.8" |
128×64 |
| F-51553GNBJ-LW-AFN |
Kyocera |
2.8" |
128×64 |
| F-51553GNBJ-LW-AEN |
Kyocera |
2.8" |
128×64 |
| F-51477GNF-SLY-ALN |
Kyocera |
4.7" |
320×240 |
| F-51320GNY-LY-AFN |
Kyocera |
2.8" |
128×64 |
| F-51405GNB-LW-ANN |
Kyocera |
5.2" |
240×64 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
TCG121XGLPBPNN-AN40 Basic Information
| Panel Model |
TCG121XGLPBPNN-AN40 |
| Panel Brand |
Kyocera |
| Descrition |
a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-30 ~ 80 °C |
| Storage Temperature |
-30 ~ 80 °C |
TCG121XGLPBPNN-AN40 Mechanical Features
| Dot Resolution |
1024(RGB)×768 (XGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
105 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.080×0.240 mm (H×V) |
| Pixel Pitch |
0.240×0.240 mm (H×V) |
| Weight |
555g |
| Surface |
Antiglare |
| Active Area |
245.76×184.32 mm (H×V) |
| Bezel Area |
249.0×187.5 mm (H×V) |
| Outline Dimension |
260.5×203 mm (H×V) |
| Outline Depth |
9.1/10.9 (Typ./Max.) mm |
| Holes & Brackets |
Side mounting holes (6-M3) on left, right bezel |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
TCG121XGLPBPNN-AN40 Optical Features
| Display Mode |
AWV, Normally Black, Transmissive |
| Brightness |
1200 cd/m² (Typ.) |
| Contrast Ratio |
750 : 1 (Typ.) (Transmissive) |
| Display Color |
262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut |
51% NTSC (CIE1931) |
| Response Time |
18/12 (Typ.)(Tr/Td) |
| Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
Symmetry |
| White color Chromaticity |
Wx:0.320; Wy:0.345 |
| Sunlight Readable |
Y |
