New and original G150XVN01.1 AUO a-Si TFT-LCD ,15.0 inch, 1024×768 for Industrial Application
G150XVN01.1 Basic Information
| Panel Model | G150XVN01.1 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -30 ~ 70 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
G150XVN01.1 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 910g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.2×231.1 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 9.6 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
- Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
- Function Inspection
Make sure all functions are 100% tested ok
G150XVN01.1 Optical Features
| Display Mode | MVA, Normally Black, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 20/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.300; Wy:0.325 |
| White Variation | 1.33 (Max.)(5 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
G150XVN01.1 Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 10.1W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| B116XAN02.0 CELL | AUO | 11.6" | 1366×768 |
| B101UAN02.1 CELL | AUO | 10.1" | 1920×1200 |
| B101EAN01.7 CELL | AUO | 10.1" | 1280×800 |
| B101EAN01.0 CELL | AUO | 10.1" | 1280×800 |
| B116XAN02.5 CELL | AUO | 11.6" | 1366×768 |
| T550HVN05.0 CELL | AUO | 55" | 1920×1080 |
| T650QVN01.0 CELL | AUO | 65" | 3840×2160 |
| A018AN03 V2 | AUO | 1.8" | 280×220 |
We also have other industrial LCD panels, pls contact to us for the further information

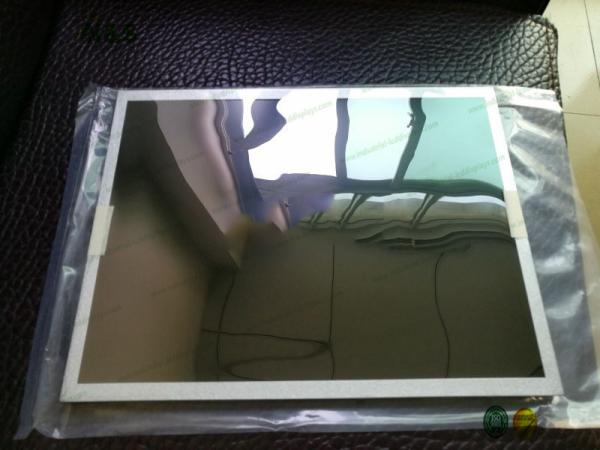

G150XVN01.1 pictures
