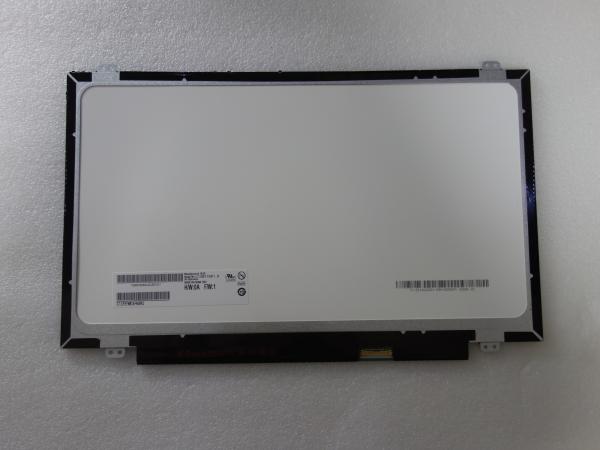

Normally White G140XTN01.0 AUO 14 inch LCM 1366×768 for Industrial Application
AUO G140XTN01.0 Mechanical Details
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.0755×0.2265 mm (H×V) |
|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2265×0.2265 mm (H×V) |
| Mechanical Size : | Display Area | 309.399×173.952 mm (H×V) | Bezel Area | - |
|---|
| Outline Dim. | 320.4×205.1 mm (H×V) | Outline Depth | 2.8/3.0 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle Display | Orientation | Landscape type |
|---|
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
|---|
| Other Features : | Weight | 270g (Max.) | Surface | Antiglare, Hard coating (3H) |
|---|
AUO G140XTN01.0 Optical Details
| Basic Information : | Brightness | 220 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | 6 o'clock | Response Time | 8 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
|---|
| Color Gamut | 45% NTSC (CIE1931) | Uniformity | 1.25/1.60 (Max.)(5/13 points) |
AUO G140XTN01.0 Interface Details
| Signal Systerm : | eDP (1 Lane) | Logic Voltage | - |
|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 333/364mA (Typ./Max.) |
|---|
| Consumption | 1.2/1.5W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | | |
|---|
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
|---|
| I-PEX | 20455-030E-02 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-020A |
