New and original SP14Q009 HITACHI STN-LCD ,5.7 inch, 320×240 for 60Hz
SP14Q009 Basic Information
| Panel Model | SP14Q009 |
| Panel Brand | HITACHI |
| Descrition | STN-LCD ,5.7 inch, 320×240 |
| Panel Type | STN-LCD |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
SP14Q009 Mechanical Features
| Dot Resolution | 320×240 (QVGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.360×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Active Area | 115.185×86.385 mm (H×V) |
| Landscape or Portrait | Landscape type |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
SP14Q009 Optical Features
| Display Mode | STN |
| Display Color | Monochrome () |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
SP14Q009 Signal Interface
| Signal Category | Parallel Data |
| Signal Class | Parallel Data (4-bit) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LMG9910ZWCC | KOE | 11.3" | 800×600 |
| LMG9211XUCC | KOE | 9.4" | 640×480 |
| SX21V001-Z3 | KOE | 8.2" | 640×480 |
| LM238XB | KOE | 5.9" | 240×128 |
| SP06Q002-TZA | KOE | 2.5" | 320×240 |
| SP14Q011-A | KOE | 5.7" | 320×240 |
| SP19V001 | KOE | 7.5" | 640×480 |
| SP06Q002-T | KOE | 2.5" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

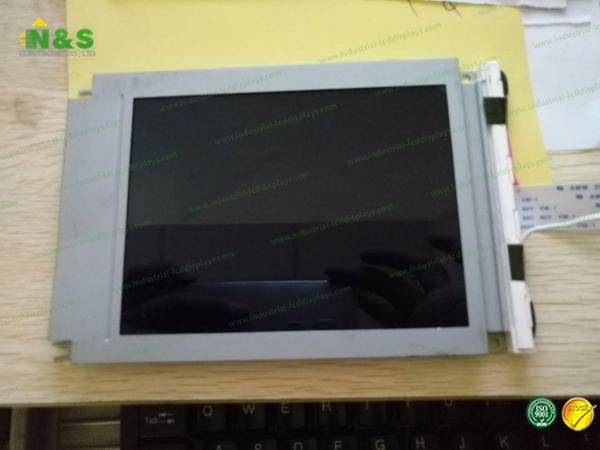

SP14Q009 pictures
