New and original TX17D02VM2CPA HITACHI a-Si TFT-LCD ,6.5 inch, 640×480 for Medical Imaging
TX17D02VM2CPA Basic Information
| Panel Model | TX17D02VM2CPA |
| Panel Brand | HITACHI |
| Descrition | a-Si TFT-LCD ,6.5 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
TX17D02VM2CPA Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 122 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.069×0.207 mm (H×V) |
| Pixel Pitch | 0.207×0.207 mm (H×V) |
| Weight | 240g (Typ.) |
| Surface | Antiglare |
| Active Area | 132.48×99.36 mm (H×V) |
| Bezel Area | 135.9×102.8 mm (H×V) |
| Outline Dimension | 153×118 mm (H×V) |
| Outline Depth | 10.2 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive, Film / Glass) |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
TX17D02VM2CPA Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 480 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.300; Wy:0.310 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
TX17D02VM2CPA Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 4.72W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LMG9200XUCC | KOE | 9.4" | 640×480 |
| LMG7420PLFC | KOE | 5.1" | 240×128 |
| LMG5320XUFC | KOE | 7.2" | 640×480 |
| LMG6402PLFR | KOE | 5.1" | 240×128 |
| LMG6401PLGE | KOE | 5.1" | 240×128 |
| LMG6400PLGR | KOE | 5.1" | 240×128 |
| LMG7380QHFC | KOE | 4.8" | 256×64 |
| LMG6391QHGE | KOE | 4.8" | 256×64 |
We also have other industrial LCD panels, pls contact to us for the further information

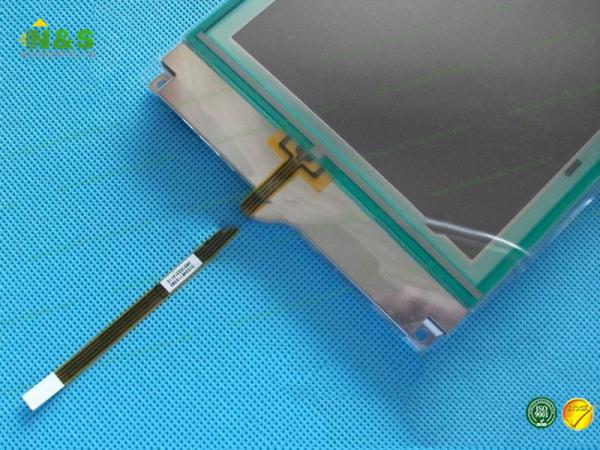

TX17D02VM2CPA pictures
