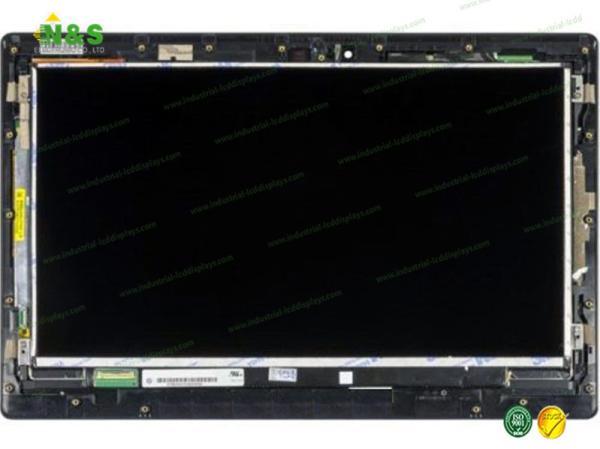

New and original N133HSG-WJ11 13.3 inch 1920×1080 TFT LCD Module NActive Area 293.76×165.24 mm
N133HSG-WJ1 Basic Information
| Panel Model |
N133HSG-WJ1 |
| Panel Brand |
CHIMEI INNOLUX |
| Descrition |
a-Si TFT-LCD ,13.3 inch, 1920×1080 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
| Remarks |
Dual panel touch assembly. For Asus TAICHI 31 |
N133HSG-WJ1 Mechanical Features
| Dot Resolution |
1920(RGB)×1080 (FHD) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
166 PPI |
| Aspect Ratio |
16:9 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.051×0.153 mm (H×V) |
| Pixel Pitch |
0.153×0.153 mm (H×V) |
| Weight |
525g (Max.) |
| Surface |
Antiglare (Haze 1%) |
| Active Area |
293.76×165.24 mm (H×V) |
| Outline Dimension |
337.2×224.81 mm (H×V) |
| Outline Depth |
5.27/5.33 (Typ./Max.) mm |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Embeded (Projected Capacitive Touch) |
| Panel Cover |
With Cover Lens |
N133HSG-WJ1 Optical Features
| Display Mode |
AAS, Normally Black, Transmissive |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
700 : 1 (Typ.) (Transmissive) |
| Display Color |
16.7M (8-bit) |
| Color Gamut |
72% NTSC (CIE1931) |
| Response Time |
14/11 (Typ.)(Tr/Td) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
Symmetry |
| Sunlight Readable |
N |
