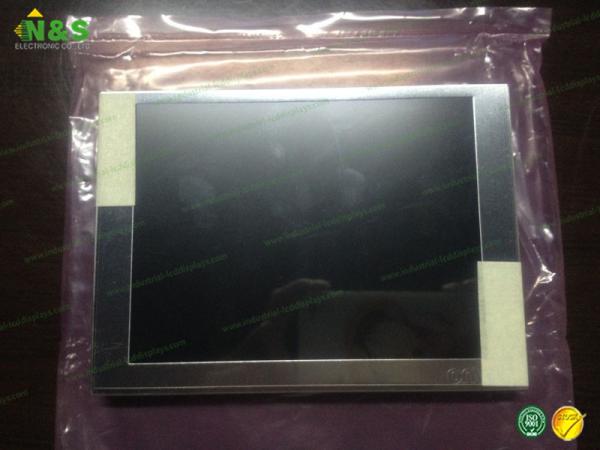

Resolution 640×480 AUO G057VN01 V2 5.7 inch Active Area 115.2×86.4 mm Surface Antiglare, Hard coating (3H)
G057VN01 V2 Basic Information
| Panel Model |
G057VN01 V2 |
| Panel Brand |
AUO |
| Descrition |
a-Si TFT-LCD ,5.7 inch, 640×480 |
| Panel Type |
a-Si TFT-LCD |
| Model Alias |
G057VN01 V.2 |
| Operating Temperature |
-30 ~ 85 °C |
| Storage Temperature |
-30 ~ 85 °C |
G057VN01 V2 Mechanical Features
| Dot Resolution |
640(RGB)×480 (VGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
141 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.060×0.180 mm (H×V) |
| Pixel Pitch |
0.180×0.180 mm (H×V) |
| Weight |
150/165g (Typ./Max.) |
| Surface |
Antiglare, Hard coating (3H) |
| Active Area |
115.2×86.4 mm (H×V) |
| Bezel Area |
118.2×89.4 mm (H×V) |
| Outline Dimension |
144×104.6 mm (H×V) |
| Outline Depth |
12.3/12.8 (Typ./Max.) mm |
| Holes & Brackets |
Rear mounting holes (4-Φ2.6) |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
G057VN01 V2 Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
700 cd/m² (Typ.) |
| Contrast Ratio |
800 : 1 (Typ.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Color Gamut |
50% NTSC (CIE1931) |
| Response Time |
15/10 (Typ.)(Tr/Td) |
| Viewing Angle |
80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
12 o'clock |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.30 (Max.)(5 points) |
| Sunlight Readable |
N |
