G156XTT01.1 AUO Display Panel , 15.6 Inch LCM Flat Panel LCD Display 1366×768

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

G156XTT01.1 AUO Display Panel , 15.6 Inch LCM Flat Panel LCD Display 1366×768

Brand Name : AUO

Model Number : G156XTT01.1

Certification : ISO9001

Place of Origin : Japan

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Model : G156XTT01.1

Panel size : 15.6 inch

Panel Type : a-Si TFT-LCD

Display Mode : TN, Normally White

Contrast Ratio : 500:1

Frequency : 60Hz

Contact Now

G156XTT01.1 AUO 15.6 inch LCM 1366×768 350 500:1 for Industrial Application

G156XTT01.1 Information

Panel Model G156XTT01.1
Panel Brand AUO
Descrition a-Si TFT-LCD ,15.6 inch, 1366×768
Panel Type a-Si TFT-LCD
Display Mode TN, Normally White, Transmissive
Active Area 344.232×193.536 mm
Outline 363.8×215.9×12.5 mm
Surface Antiglare, Hard coating (7H)
Contrast Ratio 500:1 (Typ.)
Display Colors 16.2M (6-bit + FRC) , CIE1931 62%
Response Time 6/2 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency 60Hz
Lamp Type WLED Embedded (LED Driver)
Signal Interface LVDS (1 ch, 8-bit) , 30 pins
Input Voltage 5.0V (Typ.)

G156XTT01.1 Basic Information

Panel Model G156XTT01.1
Panel Brand AUO
Descrition a-Si TFT-LCD ,15.6 inch, 1366×768
Panel Type a-Si TFT-LCD
Model Alias G156XTT01 V.1
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 60 °C

G156XTT01.1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 16.2M (6-bit + FRC)
Color Gamut 62% NTSC (CIE1931)
Response Time 6/2 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable N

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
X139BLB01.0 AUO 1.39" 400×400
H381DLN01.0 AUO 3.8" 1080×1200
H497TLB01.4 AUO 5.0" 720×1280
H163QLN01.0 AUO 1.63" 320×320
H139BLN01.2 AUO 1.39" 400×400
H500TLB01.0 AUO 5.0" 720×1280
X546DLB01.0 AUO 5.5" 1080×1920
H546DLB01.1 AUO 5.5" 1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-yearexperience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

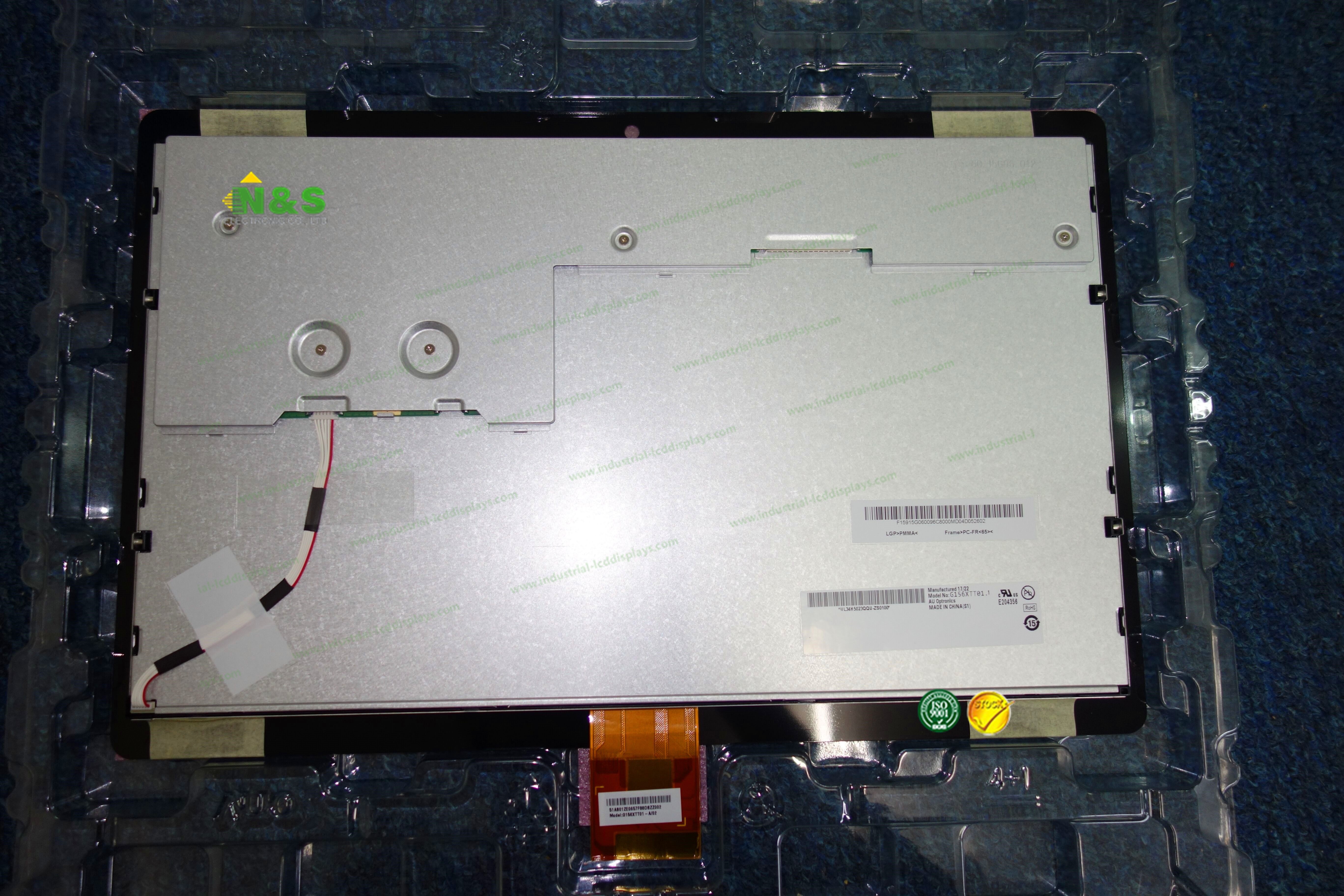

Details Pictures for G156XTT01.1

G156XTT01.1 AUO Display Panel , 15.6 Inch LCM Flat Panel LCD Display 1366×768
