Brand Name : HYDIS
Model Number : HV056WX2-100
Certification : ISO9001
Place of Origin : Japan
MOQ : 1
Payment Terms : T/T, Western Union,paypal
Supply Ability : 100 PCS / DAY
Delivery Time : 2-3 working days after payment confirmation
Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Series : HV056WX2
Keywords Desc. : HYDIS 5.6" IPS Assembly 1280×800 220nits WLED LVDS 25pins
Product Class : Graphic LCD Display
Product Tags : Color TFT-LCD,Transmissive LCD,IPS LCD
Application : MID UMPC
Panel Type : a-Si TFT-LCD
Panel Composition : Assembly
Panel Size : 5.6"
Resolution : 1280×800
Aspect Ratio : 16:10 (W:H)
Form Factor : Flat Rectangle Display
Orientation : Landscape type
Active Area : 120.96 (W) × 75.6 (H) mm (A.A)
Outline Dimension : 158 (W) × 90.3 (H) mm
Weight : 103g (Typ.)
LC Family : IPS Family
Polarizer : Transmissive
Brightness : 220 (Typ.)
Contrast Ratio : 500:1 (Typ.)
Viewing Angle : 85/85/85/85 (Typ.)(CR10) (L/R/U/D)
HYDIS 5.6 inch IPS Assembly 1280×800 220nits WLED LVDS 25pins
Quick Details:
Panel Brand : | HYDIS |
Panel Model : | HV056WX2-100 |
Panel Type : | a-Si TFT-LCD , Assembly |
Panel Size : | 5.6 inch |
Resolution : | 1280(RGB)×800 , WXGA |
Active Area : | 120.96×75.6 mm |
Outline : | 158×90.3 mm |
Surface : | Glare (Haze 0%), Hard coating (2H) |
Brightness : | 220 cd/m2 (Typ.) |
Contrast Ratio : | 500:1 (Typ.) |
Display Colors : | 262K (6-bit) , CIE1931 45% |
Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Signal Interface : | LVDS (1 ch, 6-bit) , 25 pins |
Panel Size : | 5.6 inch |
Dot Resolution : | 1280(RGB)×800 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 268 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0315×0.0945 mm (H×V) |
Pixel Pitch : | 0.0945×0.0945 mm (H×V) |
Weight : | 103g (Typ.) |
Surface : | Glare (Haze 0%), Hard coating (2H) |
Active Area : | 120.96×75.6 mm (H×V) |
Outline Dimension : | 158×90.3 mm (H×V) |
Outline Depth : | 6.25 (Typ.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Embeded (Matrix Touch) |
Panel Cover : | With Cover Lens |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
HX7308BTJFA | Himax | 0.45" | 1024×768 |
HX7027ATGFA | Himax | 0.44" | 640×480 |
HX7019ATGFA | Himax | 0.38" | 640×360 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

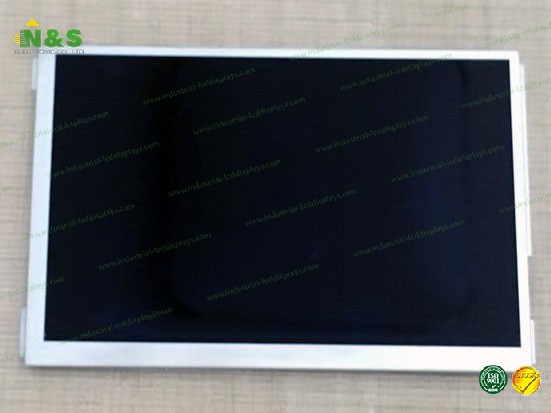

HV056WX2-100 Picture
![]() |
HYDIS 5.6 inch IPS Assembly 1280×800 220nits WLED LVDS 25pins Images |
