TM050QDH01 5.0 inch Tianma TN LCM 640×480 350nits WLED TTL 40pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

TM050QDH01 5.0 inch Tianma TN LCM 640×480 350nits WLED TTL 40pins

  • 1
  • 2

Brand Name : Tianma

Model Number : TM050QDH01

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : TM050QDH

Keywords Desc. : Tianma 5.0" TN LCM 640×480 350nits WLED TTL 40pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Transmissive LCD

Application : VOIP Phone

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 5.0"

Resolution : 640×480

Aspect Ratio : 4:3 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 101.568 (W) × 76.176 (H) mm (A.A)

Max. Depth : 15 mm

Weight : 82.20.5g

LC Family : TN

Polarizer : Transmissive

Brightness : 350 (Typ.)

Contrast Ratio : 500:1 (Typ.)

Viewing Angle : 70/70/70/60 (Typ.)(CR10) (L/R/U/D)

Contact Now

TM050QDH01 5.0 inch Tianma TN LCM 640×480 350nits WLED TTL 40pins

Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

TM050QDH01 Main Parameters

Panel Brand :TIANMA
Panel Model :TM050QDH01
Panel Type :a-Si TFT-LCD , LCM
Panel Size :5.0 inch
Resolution :640(RGB)×480 , VGA
Display Mode :TN, Normally White, Transmissive
Active Area :101.568×76.176 mm
Surface :Antiglare, Hard coating (3H)
Brightness :350 cd/m2 (Typ.)
Contrast Ratio :500:1 (Typ.)
Display Colors :262K (6-bit) , CIE1931 50%
Response Time :20 (Typ.)(Tr+Td)
Viewing Angle :70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :3S5P WLED
Signal Interface :Parallel RGB (1 ch, 6-bit) + SPI , 40 pins
Input Voltage :3.3V (Typ.)


Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

TIANMA TM050QDH01 Mechanical Features

Panel Size :5.0 inch
Dot Resolution :640(RGB)×480 (VGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :160 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0529×0.1587 mm (H×V)
Pixel Pitch :0.1587×0.1587 mm (H×V)
Weight :82.2±0.5g
Surface :Antiglare, Hard coating (3H)
Active Area :101.568×76.176 mm (H×V)
Outline Depth :7.9/15.0 (Typ./Max.) mm
Holes & Brackets :Face mounting holes (4 pcs) on up, down, left slugs
Landscape or Portrait :Landscape type
Touch Panel :Without


Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
TM240160XCFWGRATianma2.2"240×160
TM128128F6CCWGWC1Tianma1.44"128×128
TM12864G3CCWGWA-1Tianma2.4"128×64
TM050XYSP02Tianma5.0"540×960
TM050JYHN11-00Tianma5.0"720×1280
TM055JYSP08Tianma5.5"720×1280
TM040XYHP01Tianma4.0"640×1136

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

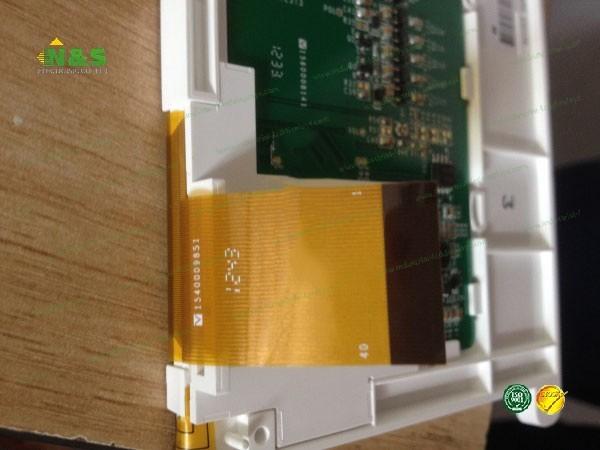

TM050QDH01 Picture

TM050QDH01 5.0 inch Tianma TN LCM 640×480 350nits WLED TTL 40pins
