NL6448BC33-64 10.4 inch TN LCM 640×480 450nits CCFL TTL 31pins

N&S ELECTRONIC CO., LIMITED
Contact Now

NL6448BC33-64 10.4 inch TN LCM 640×480 450nits CCFL TTL 31pins

Brand Name : For Apple,For Samsung,For Asus,For Huawei,For Acer,For Amazon Kindle,Universal,Other

Model Number : NL6448BC33-64

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : NL6448BC33-64

Keywords Desc. : NLT 10.4" TN LCM 640×480 450nits CCFL TTL 31pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Transmissive LCD

Application : Industrial Application

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 10.4"

Resolution : 640×480

Aspect Ratio : 4:3 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 211.2 (W) × 158.4 (H) mm (A.A)

Viewing Area : 215.4 (W) × 161.8 (H) mm (V.A)

Outline Dimension : 243 (W) × 185.1 (H) mm

Max. Depth : 11 mm

Weight : 475/500g (Typ./Max.)

LC Family : TN

Polarizer : Transmissive

Brightness : 450 (Typ.)

Contact Now

NL6448BC33-64 10.4 inch TN LCM 640×480 450nits CCFL TTL 31pins

Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

NL6448BC33-64 Main Parameters

Panel Brand : NEC
Panel Model : NL6448BC33-64
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 243×185.1×11 mm
Surface : Clear, Hard coating (3H)
Brightness : 450 cd/m2 (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 6/19 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL
Signal Interface : CMOS (1 ch, 6-bit) , 31 pins
Input Voltage : 3.3/5.0V (Typ.)

NEC NL6448BC33-64 Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 475/500g (Typ./Max.)
Surface : Clear, Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 243×185.1 mm (H×V)
Outline Depth : 10.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without


Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
ED133TT1 E Ink 13.3" 2200×1650
ED060SD1 E Ink 6.0" 600×800
ED060SCT E Ink 6.0" 600×800
ET043OC1 E Ink 4.4" 360×640
EN133UT1 E Ink 13.3" 1600×1200
ED047TC1 E Ink 4.7" 540×960
ED133UT1 E Ink 13.3" 1600×1200
ES133UT1 E Ink 13.3" 1600×1200

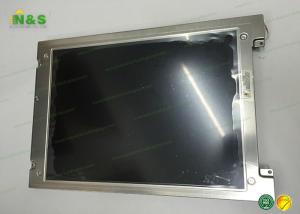

NL6448BC33-64 Picture

NL6448BC33-64 10.4 inch TN LCM 640×480 450nits CCFL TTL 31pins
