3.5 inch NL2432HC22-40 TN LCM 240×320 220nits WLED TTL 45pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

3.5 inch NL2432HC22-40 TN LCM 240×320 220nits WLED TTL 45pins

Brand Name : For Apple,For Samsung,For Asus,For Huawei,For Acer,For Amazon Kindle,Universal,Other

Model Number : NL2432HC22-40

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : NL2432HC22-40

Keywords Desc. : NLT 3.5" TN LCM 240×320 220nits WLED TTL 45pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Transflective LCD,Sunlight Readable LCD

Application : Handheld Product,PDA

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 3.5"

Resolution : 240×320

Aspect Ratio : 3:4 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Portrait type

Active Area : 53.64 (W) × 71.52 (H) mm (A.A)

Outline Dimension : 63.5 (W) × 85 (H) mm

Max. Depth : 3.2 mm

Weight : 25.0/28.0g (Typ./Max.)

LC Family : TN

Polarizer : Transflective

Brightness : 220 (Typ.)

Contrast Ratio : 150:1 (Typ.)

Contact Now

3.5 inch NL2432HC22-40 TN LCM 240×320 220nits WLED TTL 45pins

NL2432HC22-40 Main Parameters

Panel Brand :NEC
Panel Model :NL2432HC22-40A
Panel Type :a-Si TFT-LCD , LCM
Panel Size :3.5 inch
Resolution :240(RGB)×320 , QVGA
Display Mode :TN, Normally White, Transflective
Active Area :53.64×71.52 mm
Outline :63.5×85×3.2 mm
Surface :Clear, Hard coating (3H)
Brightness :220 cd/m2 (Typ.)
Contrast Ratio :150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective)
Display Colors :262K (6-bit) , CIE1931 40%
Response Time :7/23 (Typ.)(Tr/Td)
Viewing Angle :35/35/35/35 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :6S1P WLED
Signal Interface :CMOS (1 ch, 6-bit) + SPI , 45 pins

NEC NL2432HC22-40A Mechanical Features

Panel Size :3.5 inch
Dot Resolution :240(RGB)×320 (QVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :113 PPI
Aspect Ratio :3:4 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0745×0.2235 mm (H×V)
Pixel Pitch :0.2235×0.2235 mm (H×V)
Weight :25.0/28.0g (Typ./Max.)
Surface :Clear, Hard coating (3H)
Active Area :53.64×71.52 mm (H×V)
Outline Dimension :63.5×85 mm (H×V)
Outline Depth :3.0±0.2 mm
Landscape or Portrait :Portrait type
Touch Panel :Without


FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
SX19V001-Z2AKOE7.5"640×480
LMG5278XUFC-AKOE9.4"640×480
LM246XKOE6.9"320×256
SX16H003-ZZBKOE6.2"640×240
LMG7401PLFCKOE5.1"240×128
LMG6411PLGEKOE5.4"240×128
LM213XBKOE5.8"256×64

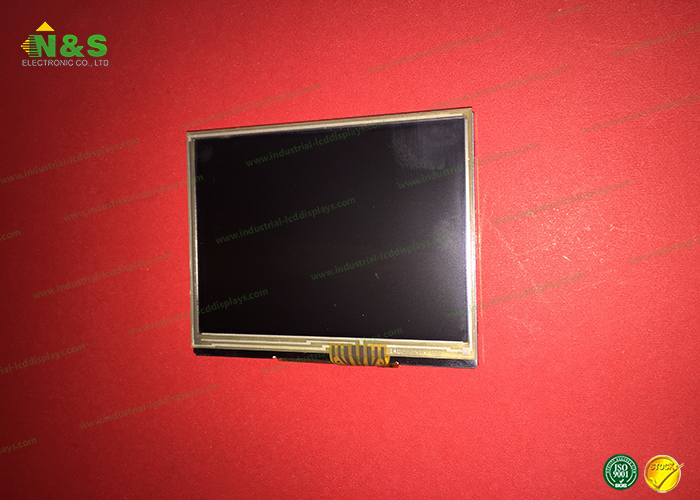

NL2432HC22-40 Picture

3.5 inch NL2432HC22-40 TN LCM 240×320 220nits WLED TTL 45pins
