Brand Name : NEC
Model Number : NL6448BC20-18
Certification : ISO9001
Place of Origin : Japan
MOQ : 1
Payment Terms : T/T, Western Union,paypal
Supply Ability : 100 PCS / DAY
Delivery Time : 2-3 working days after payment confirmation
Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Series : NL6448BC20-18
Keywords Desc. : NLT 6.5" TN LCM 640×480 400nits CCFL TTL 31pins
Product Class : Graphic LCD Display
Product Tags : Color TFT-LCD,Transmissive LCD
Application : Industrial Application
Panel Type : a-Si TFT-LCD
Panel Composition : LCM
Panel Size : 6.5"
Resolution : 640×480
Aspect Ratio : 4:3 (W:H)
Form Factor : Flat Rectangle Display
Orientation : Landscape type
Active Area : 132.48 (W) × 99.36 (H) mm (A.A)
Viewing Area : 135.9 (W) × 102.8 (H) mm (V.A)
Outline Dimension : 153 (W) × 118 (H) mm
Weight : 205/215g (Typ./Max.)
LC Family : TN
Polarizer : Transmissive
Brightness : 400 (Typ.)
Contrast Ratio : 600:1 (Typ.)
NL6448BC20-18 6.5 inch TN LCM 640×480 400nits CCFL TTL 31pins
NL6448BC20-18 General Features
Panel Brand : | NEC |
Panel Model : | NL6448BC20-18 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 6.5 inch |
Resolution : | 640(RGB)×480 , VGA |
Active Area : | 132.48×99.36 mm |
Panel Size : | 6.5 inch |
Dot Resolution : | 640(RGB)×480 (VGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 122 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.069×0.207 mm (H×V) |
Pixel Pitch : | 0.207×0.207 mm (H×V) |
Active Area : | 132.48×99.36 mm (H×V) |
Landscape or Portrait : | Landscape type |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LK315T3HC1K | SHARP | 31.5" | 1366×768 |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |

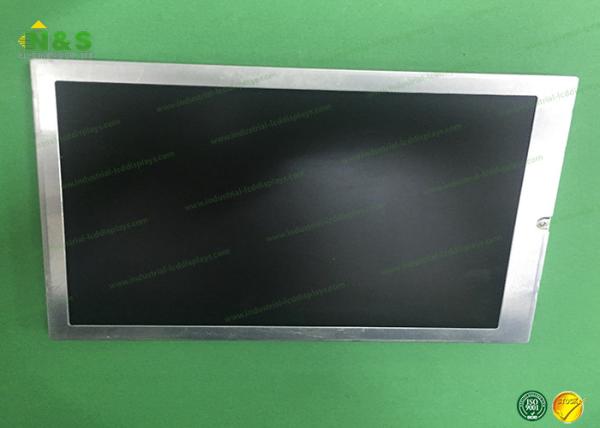

NL6448BC20-18 Picture
![]() |
NL6448BC20-18 NEC LCD Panel 6.5 inch TN LCM 640×480 400nits CCFL TTL 31pins Images |
