LQ10D368 SHARP 10.4 inch TN LCM 640×480 200nits CCFL TTL 31pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LQ10D368 SHARP 10.4 inch TN LCM 640×480 200nits CCFL TTL 31pins

Brand Name : SHARP

Model Number : LQ10D368

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : LQ10D36

Keywords Desc. : SHARP 10.4" TN LCM 640×480 200nits CCFL TTL 31pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Transmissive LCD

Application : Industrial Application

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 10.4"

Resolution : 640×480

Aspect Ratio : 4:3 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 211.2 (W) × 158.4 (H) mm (A.A)

Viewing Area : 214.6 (W) × 162.4 (H) mm (V.A)

Outline Dimension : 246.5 (W) × 179.4 (H) mm

Max. Depth : 11 mm

Weight : 520g (Max.)

LC Family : TN

Polarizer : Transmissive

Brightness : 200 (Typ.)

Contact Now

LQ10D368 SHARP 10.4 inch TN LCM 640×480 200nits CCFL TTL 31pins

LQ10D368 General Features

Panel Brand : SHARP
Panel Model : LQ10D368
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 246.5×179.4×11 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 200 cd/m2 (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 20/40 (Typ.)(Tr/Td)
Viewing Angle : 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 1 pcs CCFL
Signal Interface : Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage : 3.3/5.0V (Typ.)(VCC)

SHARP LQ10D368 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m2 (Typ.)
Contrast Ratio : 300 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 20/40 (Typ.)(Tr/Td)
Viewing Angle : 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.45 (Max.)(5 points)
Sunlight Readable : N

Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

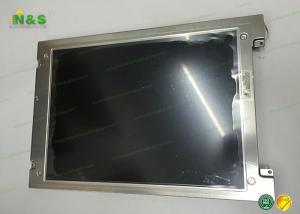

LQ10D368 Picture

LQ10D368 SHARP 10.4 inch TN LCM 640×480 200nits CCFL TTL 31pins
