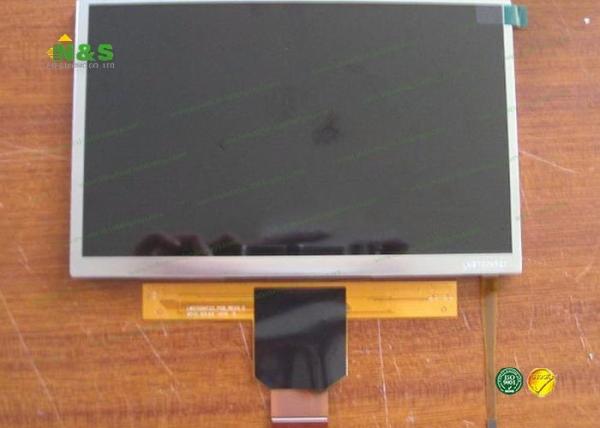

LMS700KF23 7.0 inch Samsung LCD Panel Normally White with 152.4×91.44 mm Active Area

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LMS700KF23 7.0 inch Samsung LCD Panel Normally White with 152.4×91.44 mm Active Area

  • 1
  • 2

Brand Name : Samsung

Model Number : LMS700KF23

Certification : ISO9001

Place of Origin : Korea

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 7.0 inch

Outline : 163.2×104×3.6 mm

Brightness : 350 cd/m² (Typ.)

Frequency : 60Hz

Contact Now

LMS700KF23 7.0 inch Samsung LCD Panel Normally White with 152.4×91.44 mm Active Area

LMS700KF23 Characteristic

Panel Brand : SAMSUNG SMD
Panel Model : LMS700KF23
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, TMR
Active Area : 152.4×91.44 mm
Outline : 163.2×104×3.6 mm
Surface :
Brightness : 350 cd/m2 (Typ.)
Contrast Ratio : 700 : 1 (Typ.)
Display Colors : 16.2M (6-bit + FRC)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit]
Lamp Type : 8S3P WLED Without

SAMSUNG SMD LMS700KF23 Mechanical Features

Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 133 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0635×0.1905 mm (H×V)
Pixel Pitch : 0.1905×0.1905 mm (H×V)
Weight : 115g (Typ.)
Active Area : 152.4×91.44 mm (H×V)
Outline Dimension : 163.2×104 mm (H×V)
Outline Depth : 3.4±0.2 mm
Holes & Brackets : Without


Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.

What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS465GS47 Samsung 4.7" 720×1280
AMS477GV11 Samsung 4.8" 720×1280
AMS499QP59 Samsung 5.0" 1080×1920
AMS499QP53 Samsung 5.0" 1080×1920
AMS499QP07 Samsung 5.0" 1080×1920
AMS499QP01 Samsung 5.0" 1080×1920
AMS568AT01 Samsung 5.7" 1440×2560
AMS840CS04 Samsung 8.4" 1600×2560

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
