NL6448CC33-30 NEC LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
NL6448CC33-30 Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL6448CC33-30 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 264×187.8×9.3 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 0 cd/m2 |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 43% |
| Response Time : | 15/55 (Typ.)(Tr/Td) |
| Viewing Angle : | 30/30/20/20 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | No B/L |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 34 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
NEC NL6448CC33-30 Mechanical Features
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 300g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.0×161.2 mm (H×V) |
| Outline Dimension : | 264×187.8 mm (H×V) |
| Outline Depth : | 8.8±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| TD015OC1 | E Ink | 1.54" | 200×200 |
| ED060XC3 | E Ink | 6.0" | 758×1024 |
| ED060SCN | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

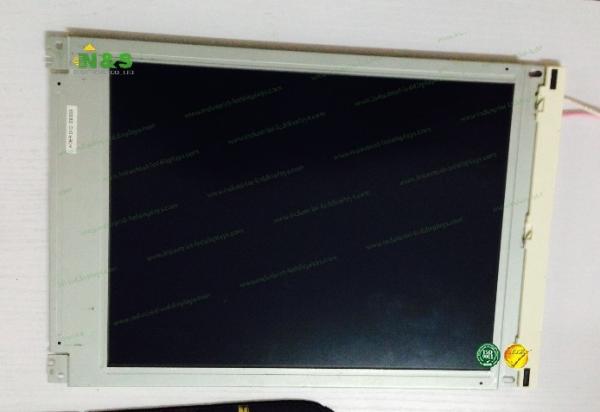

NL6448CC33-30 Picture
