LQ038Q5DR01 SHARP 3.8 inch TN LCM 320×240 450nits CCFL TTL 40pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LQ038Q5DR01 SHARP 3.8 inch TN LCM 320×240 450nits CCFL TTL 40pins

Brand Name : SHARP

Model Number : LQ038Q5DR01

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : LQ038Q5DR

Keywords Desc. : SHARP 3.8" TN LCM 320×240 450nits CCFL TTL 40pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Wide Temperature LCD,Transmissive LCD

Application : Automotive Display

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 3.8"

Resolution : 320×240

Aspect Ratio : 15:10 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 78.72 (W) × 53.64 (H) mm (A.A)

Outline Dimension : 117.6 (W) × 69.45 (H) mm

Weight : 135g (Max.)

LC Family : TN

Polarizer : Transmissive

Brightness : 450 (Typ.)

Contrast Ratio : 100:1 (Typ.)

Viewing Angle : 65/65/40/65 (Typ.)(CR5) (L/R/U/D)

Contact Now

LQ038Q5DR01 SHARP 3.8 inch TN LCM 320×240 450nits CCFL TTL 40pins

LQ038Q5DR01 General Features

Panel Brand : SHARP
Panel Model : LQ038Q5DR01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 3.8 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 78.72×53.64 mm
Outline : 117.6×69.45 mm
Surface : Antiglare, Antireflection
Brightness : 450 cd/m2 (Typ.)
Contrast Ratio : 100:1 (Min.)
Display Colors : 262K (6-bit)
Response Time : 30/50 (Typ.)(Tr/Td)
Viewing Angle : 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL
Signal Interface : Parallel RGB (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)(VCC)

Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.

N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800
LQ133T1JW14B SHARP 13.3" 2560×1440

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

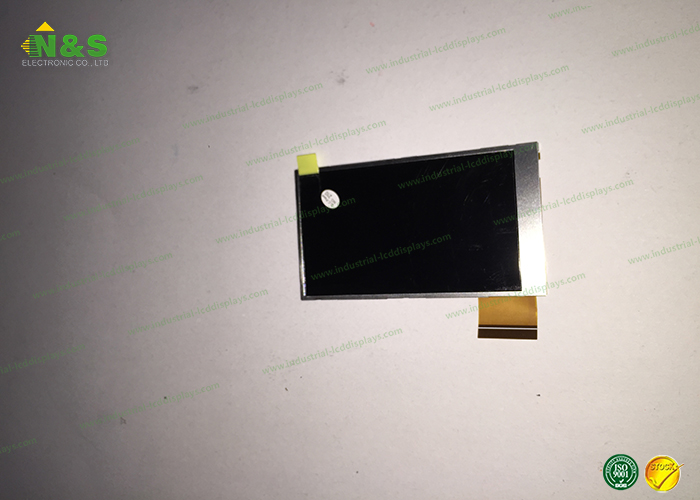

LQ038Q5DR01 Picture
