SHARP LQ035Q7DB02R 3.5 inch TN LCM 240×320 50nits WLED TTL 50pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

SHARP LQ035Q7DB02R 3.5 inch TN LCM 240×320 50nits WLED TTL 50pins

Brand Name : SHARP

Model Number : LQ035Q7DB02R

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : LQ035Q7DB

Keywords Desc. : SHARP 3.5" TN LCM 240×320 50nits WLED TTL 50pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable

Application : Handheld Product

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 3.5"

Resolution : 240×320

Aspect Ratio : 3:4 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Portrait type

Active Area : 53.64 (W) × 71.52 (H) mm (A.A)

Viewing Area : 57.4 (W) × 75.2 (H) mm (V.A)

Outline Dimension : 65 (W) × 85 (H) mm

Max. Depth : 4.8 mm

Weight : 50.0g (Typ.)

LC Family : TN

Polarizer : Transflective

Brightness : 50 (Typ.)

Contact Now

SHARP LQ035Q7DB02R 3.5 inch TN LCM 240×320 50nits WLED TTL 50pins

LQ035Q7DB02R Main Parameters

Panel Brand :SHARP
Panel Model :LQ035Q7DB02R
Panel Type :a-Si TFT-LCD , LCM
Panel Size :3.5 inch
Resolution :240(RGB)×320 , QVGA
Display Mode :TN, Normally White, Transflective
Active Area :53.64×71.52 mm
Outline :65×85×4.8 mm
Surface :Hard coating (3H)
Brightness :50 cd/m2 (Typ.)
Contrast Ratio :70:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective)
Display Colors :262K (6-bit)
Response Time :30/50 (Typ.)(Tr/Td)
Viewing Angle :40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
Frequency :60Hz
Lamp Type :WLED
Signal Interface :Parallel RGB (1 ch, 6-bit) , 50 pins
Input Voltage :5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)

SHARP LQ035Q7DB02R Mechanical Features

Panel Size :3.5 inch
Dot Resolution :240(RGB)×320 (QVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :113 PPI
Aspect Ratio :3:4 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0745×0.2235 mm (H×V)
Pixel Pitch :0.2235×0.2235 mm (H×V)
Weight :50.0g (Typ.)
Surface :Hard coating (3H)
Active Area :53.64×71.52 mm (H×V)
Bezel Area :57.4×75.2 mm (H×V)
Outline Dimension :65×85 mm (H×V)
Outline Depth :4.5±0.3 mm
Landscape or Portrait :Portrait type
Touch Panel :Embeded (4-wire Resistive)


Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
LK315T3HC1KSHARP31.5"1366×768
LQ055T3SX04SHARP5.5"1080×1920
LQ079L1SX06SHARP7.9"1536×2048
LQ079L1SX04SHARP7.9"1536×2048
LQ133M1JW08SHARP13.3"1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

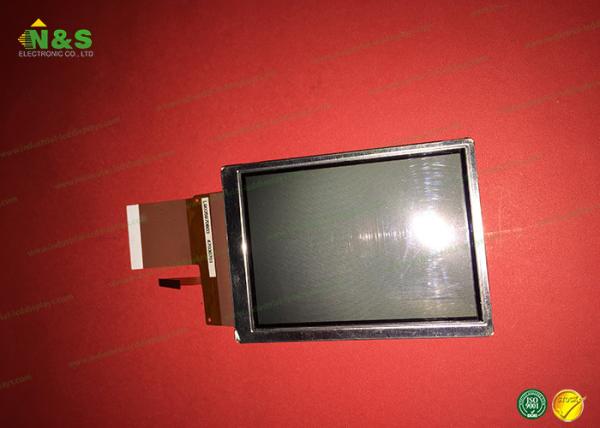

LQ035Q7DB02R Picture

SHARP LQ035Q7DB02R 3.5 inch TN LCM 240×320 50nits WLED TTL 50pins
