G057VN01 V1 Anti Glare Lcd Screen TN LCM 640×480 700nits WLED TTL 33pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

G057VN01 V1 Anti Glare Lcd Screen TN LCM 640×480 700nits WLED TTL 33pins

  • 1
  • 2

Brand Name : AUO

Model Number : G057VN01 V1

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : G057VN01

Keywords Desc. : AUO 5.7" TN LCM 640×480 700nits WLED TTL 33pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Wide Temperature LCD,High Brightness LCD,Transmissive LC

Application : Industrial Application

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 5.7"

Resolution : 640×480

Aspect Ratio : 4:3 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 115.2 (W) × 86.4 (H) mm (A.A)

Viewing Area : 118.2 (W) × 89.4 (H) mm (V.A)

Outline Dimension : 144 (W) × 104.6 (H) mm

Weight : 160/175g (Typ./Max.)

LC Family : TN

Polarizer : Transmissive

Brightness : 700 (Typ.)

Contrast Ratio : 800:1 (Typ.)

Contact Now

AUO G057VN01 V1 5.7 inch TN LCM 640×480 700nits WLED TTL 33pins

G057VN01 V1 Main Parameters

Panel Brand : AUO
Panel Model : G057VN01 V1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.7 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 115.2×86.4 mm
Outline : 144×104.6 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 700 cd/m2 (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 50%
Response Time : 15/10 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : CMOS (1 ch, 6-bit) , 33 pins
Input Voltage : 3.3V (Typ.)(VDD)

AUO G057VN01 V1 Mechanical Features

Panel Size : 5.7 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 141 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.060×0.180 mm (H×V)
Pixel Pitch : 0.180×0.180 mm (H×V)
Weight : 160/175g (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 115.2×86.4 mm (H×V)
Bezel Area : 118.2×89.4 mm (H×V)
Outline Dimension : 144×104.6 mm (H×V)
Outline Depth : 12.3 (Typ.) mm
Holes & Brackets : Rear mounting holes (4-Φ2.6)
Landscape or Portrait : Landscape type
Touch Panel : Without

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Competitive price for different brands hard disk.

• Mass stock with the better price.

• Multiple options.

• Warranty service.

• Better team to provide the before-sales, on-sale and after-sale service

• Pls send us message if any hard disk needed.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
A060SE02 V1 AUO 6.0" 800×600
A090XE01 V6 AUO 9.0" 1024×768
A090XE01 V5 AUO 9.0" 1024×768
A043SE01 V3 AUO 4.3" 600×800
H283QN00 V6 AUO 2.8" 240×320
M270DAN01.0 CELL AUO 27.0" 2560×1440
H644DAN01.1 AUO 6.5" 1080×1920
B140RTN02.0 CELL AUO 14.0" 1600×900
B156HW03 V0 CELL AUO 15.6" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

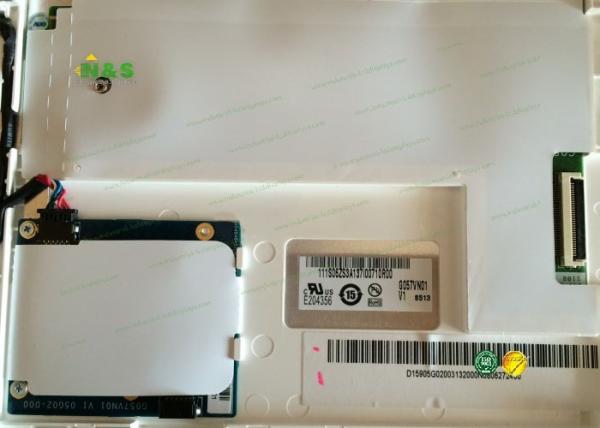

G057VN01 V1 Picture
