KOE Industrial LCD Displays TX14D11VM1CBA TN LCM 320×240 350nits CCFL TTL 40pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

KOE Industrial LCD Displays TX14D11VM1CBA TN LCM 320×240 350nits CCFL TTL 40pins

Brand Name : KOE

Model Number : TX14D11VM1CBA

Certification : ISO9001

Place of Origin : Korea

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : TX14D11

Keywords Desc. : KOE 5.7" TN LCM 320×240 350nits CCFL TTL 40pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Transmissive LCD

Application : Industrial Application

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 5.7"

Resolution : 320×240

Aspect Ratio : 4:3 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 115.2 (W) × 86.4 (H) mm (A.A)

Viewing Area : 119.4 (W) × 90.6 (H) mm (V.A)

Outline Dimension : 167 (W) × 109 (H) mm

Weight : 165g (Typ.)

LC Family : TN

Polarizer : Transmissive

Brightness : 350 (Typ.)

Contrast Ratio : 350:1 (Max.)

Contact Now

5.7 inch KOE TX14D11VM1CBA TN LCM 320×240 350nits CCFL TTL 40pins

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

TX14D11VM1CBA Quick Details:

Panel Brand : HITACHI
Panel Model : TX14D11VM1CBA
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.7 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 115.2×86.4 mm
Outline : 167×109 mm
Brightness : 350 cd/m2 (Typ.)
Contrast Ratio : 350:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 45 (Typ.)(Tr+Td)
Viewing Angle : 60/60/75/55 (Typ.)(CR≥5) (L/R/U/D)
Frequency : 60Hz

HITACHI TX14D11VM1CBA Mechanical Features

Panel Size : 5.7 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 70 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.120×0.360 mm (H×V)
Pixel Pitch : 0.360×0.360 mm (H×V)
Weight : 165g (Typ.)
Active Area : 115.2×86.4 mm (H×V)
Bezel Area : 119.4×90.6 mm (H×V)
Outline Dimension : 167×109 mm (H×V)
Outline Depth : 9.2 (Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.5)
Landscape or Portrait : Landscape type
Touch Panel : Without

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
SP24V01L0ALZZ KOE 9.4" 640×480
SP14N02L6ALCZ KOE 5.1" 240×128
SP12N01L6ALCZ KOE 4.8" 256×64
SP24V001-A KOE 9.4" 640×480
SP10Q010-T KOE 3.8" 320×240
SP10Q010-ZZA KOE 3.8" 320×240

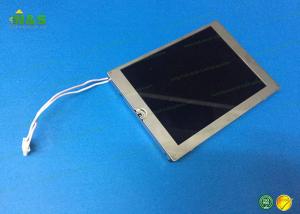

TX14D11VM1CBA Picture

KOE Industrial LCD Displays TX14D11VM1CBA TN LCM 320×240 350nits CCFL TTL 40pins
