Normally Black G101EVN01.0 AUO LCD Panel 10.1 inch for Industrial Application

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

Normally Black G101EVN01.0 AUO LCD Panel 10.1 inch for Industrial Application

  • 1
  • 2
  • 3

Brand Name : AUO

Model Number : G101EVN01.0

Certification : ISO9001

Place of Origin : Korea

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 10.1 inch

Resolution : 1280(RGB)×800 , WXGA

Active Area : 216.96×135.6 mm

Frequency : 60Hz

Contact Now

Normally Black G101EVN01.0 10.1 inch 216.96×135.6 mm for Industrial Application panel

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

G101EVN01.0 Characteristic

Panel Brand : AUO
Panel Model : G101EVN01.0
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.1 inch
Resolution : 1280(RGB)×800 , WXGA
Display Mode : MVA, Normally Black, Transmissive
Active Area : 216.96×135.6 mm
Outline : 229.46×149.2×5.54 mm
Surface : Hard coating (3H), Reflection 1.5% (Max.)
Brightness : 300 cd/m2 (Typ.)
Contrast Ratio : 1300:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit]
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)


AUO G101EVN01.0 Mechanical Features

Panel Size : 10.1 inch
Dot Resolution : 1280(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 149 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0565×0.1695 mm (H×V)
Pixel Pitch : 0.1695×0.1695 mm (H×V)
Weight : 187g (Max.)
Surface : Hard coating (3H), Reflection 1.5% (Max.)
Active Area : 216.96×135.6 mm (H×V)
Bezel Area : 220.36×139.1 mm (H×V)
Outline Dimension : 229.46×149.2 mm (H×V)
Outline Depth : 3.76/5.54 (Typ./Max.) mm


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
X139BLB01.0 AUO 1.39" 400×400
H381DLN01.0 AUO 3.8" 1080×1200
H497TLB01.4 AUO 5.0" 720×1280
H163QLN01.0 AUO 1.63" 320×320
H139BLN01.2 AUO 1.39" 400×400
H500TLB01.0 AUO 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


Product Tags:

auo display panel



auo lcd screen


China Normally Black G101EVN01.0 AUO LCD Panel 10.1 inch for Industrial Application factory

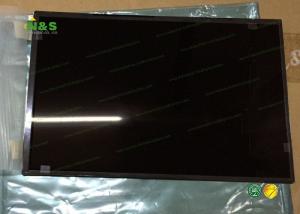

Normally Black G101EVN01.0 AUO LCD Panel 10.1 inch for Industrial Application Images
