Industrial NEC LCD Panel 15.0 Inch 304.128×228.096 Mm Active Area NL10276BC30-19

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

Industrial NEC LCD Panel 15.0 Inch 304.128×228.096 Mm Active Area NL10276BC30-19

Brand Name : NEC

Model Number : NL10276BC30-19

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Supply Ability : 500PCS/DAY

Outline : 326.5×253.5 mm

Brightness : 350 cd/m² (Typ.)

Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%

Signal Interface : LVDS (1 ch, 8-bit)

Contact Now

NL10276BC30-19 NEC LCD Panel 15.0 inch with 304.128×228.096 mm Active Area

NL10276BC30-19 Detail

Panel Brand : NEC
Panel Model : NL10276BC30-19
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : UA-SFT, Normally Black, Transmissive
Active Area : 304.128×228.096 mm
Outline : 326.5×253.5 mm
Surface : Antiglare
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 4 pcs CCFL
Signal Interface : LVDS (1 ch, 8-bit)
Input Voltage : 3.3V (Typ.)

Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.30Kgs (Typ.)
Surface : Antiglare
Active Area : 304.128×228.096 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth : 17 mm
Landscape or Portrait : Landscape type

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ΠYear warranty

ΠDay shipping

‹ Return

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
ED0970C1 E Ink 9.7" 1200×825
ED097OC1 E Ink 9.7" 1200×825
ED080XC2 E Ink 8.0" 1024×768
ED080XC1 E Ink 8.0" 1024×768
ED060SC3 E Ink 6.0" 800×600
ED050SC1 E Ink 5.0" 800×600
PD035QX7 E Ink 3.5" 320×240
PW070DS6 E Ink 7.0" 480×234
P1924QC1 E Ink 2.4" 240×320
PM049OX1 E Ink 4.9" 266×600
V1835HC1H1 E Ink 3.5" 320×480

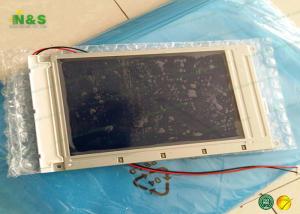

NL10276BC30-19 NEC LCD Panel Picture
