Normally Black 19.0 inch NEC NL128102BM29-05A with 376.32×301.056 mm
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
- Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
- long-term partner:
* Products are sold to more than 20 countries.
- Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
NL128102BM29-05A Specification
| Panel Brand : | NEC |
| Panel Model : | NL128102BM29-05A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(LCR)×1024 , SXGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 404.2×330×25.55 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 1000 cd/m² (Typ.) |
| Contrast Ratio : | 900:1 (Typ.) |
| Display Colors : | Grayscale (8-bit) |
| Response Time : | 18/17 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(LCR)×1024 (SXGA) |
| Pixel Configuration : | LCR Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 2.90/3.10Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.3×305.1 mm (H×V) |
| Outline Dimension : | 404.2×330 mm (H×V) |
| Outline Depth : | 22.0/25.55 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

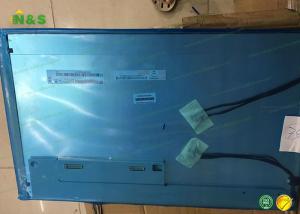

NL128102BM29-05A NEC LCD Panel Picture
