LM270WF5-SSA1 27.0 inch LG LCD Pane Normally Black 597.888×336.312 mm Active Area
LM270WF5-SSA1 Specification
| Panel Size : | 27.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 81 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1038×0.3114 mm (H×V) |
| Pixel Pitch : | 0.3114×0.3114 mm (H×V) |
| Weight : | 3.30/3.50Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%) |
| Active Area : | 597.888×336.312 mm (H×V) |
| Outline Dimension : | 617.1×361.3 mm (H×V) |
| Outline Depth : | 9.8/14.75 (Typ./Max.) mm |
| Holes & Brackets : | Rear mounting holes (11-M2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | S-IPS, Normally Black, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 14 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
| LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
| LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |

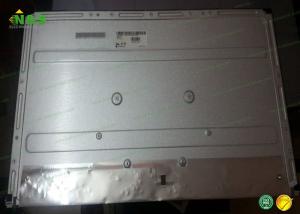

LM270WF5-SSA1 Picture
Product Tags:
|
|
LM270WF5-SSA1 27.0 inch lg lcd panel replacement 597.888×336.312 mm Active Area Images
|
