ITSX88E Industrial LCD Displays IDTech 18.1 inch with 359.04×287.232 mm

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

ITSX88E Industrial LCD Displays IDTech 18.1 inch with 359.04×287.232 mm

  • 1
  • 2

Brand Name : IDTech

Model Number : ITSX88E

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Contrast Ratio : 700 cd/m² (Typ.)

Panel Size : 18.1 inch

Resolution : 1280(LCR)×1024 , SXGA

Frequency : 60Hz

Contact Now

ITSX88E Industrial LCD Displays IDTech 18.1 inch with 359.04×287.232 mm

Products Information:

Panel Size :18.1 inch
Dot Resolution :1280(LCR)×1024 (SXGA)
Pixel Configuration :LCR Vertical Stripe
Pixel Density :90 PPI
Aspect Ratio :5:4 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0935×0.2805 mm (H×V)
Pixel Pitch :0.2805×0.2805 mm (H×V)
Weight :2.90Kgs (Typ.)
Active Area :359.04×287.232 mm (H×V)
Bezel Area :367.0×295.2 mm (H×V)
Outline Dimension :389×317.2 mm (H×V)
Outline Depth :35.0 (Max.) mm
Holes & Brackets :Side mounting holes (10-M3)
Landscape or Portrait :Landscape type
Touch Panel :Without

Display Mode :
DD-IPS, Normally Black, Transmissive
Brightness :700 cd/m² (Typ.)
Contrast Ratio :550 : 1 (Typ.) (Transmissive)
Display Color :Grayscale (8-bit)
Response Time :40 (Typ.)(Tr+Td)
Viewing Angle :85/85/85/85 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :Wx:0.299; Wy:0.305
Sunlight Readable :N


Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
ED060KG1E Ink6.0"1072×1448
ED060KC1E Ink6.0"1072×1448
ED060XC9E Ink6.0"758×1024
ED060XD7E Ink6.0"758×1024
ED080TC1E Ink8.0"1600×1200
ED097TC1E Ink9.7"1200×825
ET047TC1E Ink4.7"540×960
ET040TC1E Ink4.0"480×720
ED043WH1E Ink4.3"480×800

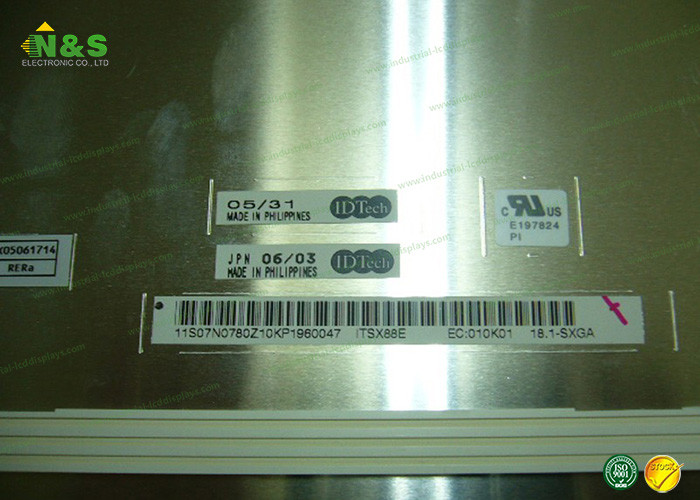

ITSX88E Picture

ITSX88E Industrial LCD Displays IDTech 18.1 inch with 359.04×287.232 mm

ITSX88E Industrial LCD Displays IDTech 18.1 inch with 359.04×287.232 mm
