8.0 inch CLAA080UA01 Industrial LCD Displays CPT with 182.4×87.552 mm

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

8.0 inch CLAA080UA01 Industrial LCD Displays CPT with 182.4×87.552 mm

  • 1
  • 2
  • 3

Brand Name : CPT

Model Number : CLAA080UA01

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 8.0 inch

Resolution : 1600(RGB)×768

Contrast Ratio : 400:1 (Typ.)

Signal Interface : LVDS (1 ch, 6-bit) , 30 pins

Contact Now

8.0 inch CLAA080UA01 Industrial LCD Displays CPT with 182.4×87.552 mm

Our Company Strength in LCD Screen Sourcing:

  1. ISO9001 certificated, Factory Direct Supplied
  2. Competitive Price and Short Lead-time
  3. Professional Team with Rich Experiences in LCD screen international trade communication.
  4. Small MOQ Support & Fast Response to Customers
  5. Long Product Life Time
  6. 1 Year warranty for our LCD screen replacements.
Products Information:
Panel Size :
8.0 inch
Dot Resolution : 1600(RGB)×768
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 222 PPI
Aspect Ratio : 2:1 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.038×0.114 mm (H×V)
Pixel Pitch : 0.114×0.114 mm (H×V)
Weight :
80g (Typ.)
Surface : Antiglare (Haze 42%), Hard coating (3H)
Active Area : 182.4×87.552 mm (H×V)
Outline Dimension : 195.3×111.5 mm (H×V)
Outline Depth : 2.42/3.38 (Typ./Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without

Display Mode :
TN, Normally White, Transmissive
Brightness : 340 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 35/35/10/30 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity :
Wx:0.313; Wy:0.329
White Variation : 1.25/1.54 (Max.)(5/13 points)
Transmissivity : 4.4% (Typ.)(with Polarizer)
Sunlight Readable : N

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
CLAN070NQ06 CPT 7.0" 1024×600
CLAG050LD01 CPT 5.0" 480×854
CLAN060LB41 2XC CPT 6.0" 540×960
CLAD015GA01 CXA CPT 1.5" 480×240
CLAN101FP05 XG CPT 10.1" 1920×1200

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

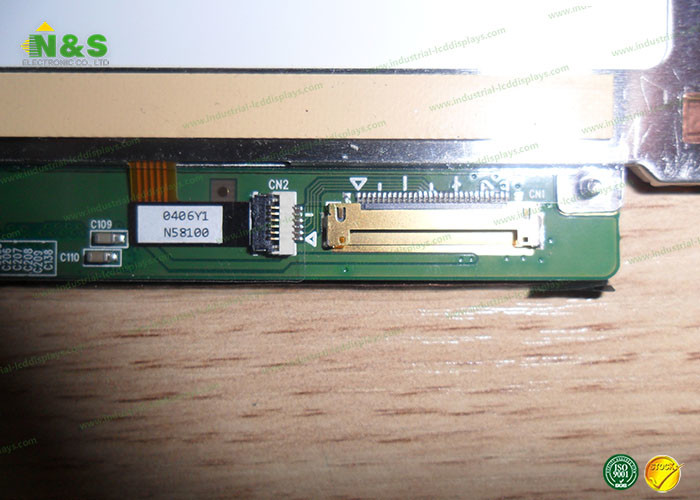

CLAA080UA01 Picture

8.0 inch CLAA080UA01 Industrial LCD Displays CPT with 182.4×87.552 mm

8.0 inch CLAA080UA01 Industrial LCD Displays CPT with 182.4×87.552 mm

8.0 inch CLAA080UA01 Industrial LCD Displays CPT with 182.4×87.552 mm
