TM043NBH01 Tianma LCD Displays Tianma 4.3 inch LCM 480×272 with 95.04×53.856 mm Active Area
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
- Provide excellent LCD screen replacements with competitive price.
- Safe, quick and efficient supply chain.
- Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
- Your problems will be replied within 24 hours.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
TM043NBH01 Information
| Panel Size : |
4.3 inch |
| Dot Resolution : |
480(RGB)×272 (WQVGA) |
| Pixel Configuration : |
RGB Vertical Stripe |
| Pixel Density : |
128 PPI |
| Aspect Ratio : |
16:9 (H:V) |
| Form Factor : |
Flat Rectangle Display |
| Dot Pitch : |
0.066×0.198 mm (H×V) |
| Pixel Pitch : |
0.198×0.198 mm (H×V) |
| Weight : |
56g |
| Surface : |
Antiglare |
| Active Area : |
95.04×53.856 mm (H×V) |
| Bezel Area : |
99.2×57.1 mm (H×V) |
| Outline Dimension : |
105.5×67.2 mm (H×V) |
| Outline Depth : |
4.15/5.5 (Typ./Max.) mm |
| Landscape or Portrait : |
Landscape type |
| Touch Panel : |
Embeded (4-wire Resistive) |
| Display Mode : |
TN, Normally White, Transmissive |
| Brightness : |
400 cd/m² (Typ.) |
| Contrast Ratio : |
450 : 1 (Typ.) (Transmissive) |
| Display Color : |
16.7M (8-bit) |
| Color Gamut : |
50% NTSC (CIE1931) |
| Response Time : |
20 (Typ.)(Tr+Td) |
| Viewing Angle : |
70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : |
6 o'clock |
| White color Chromaticity : |
Wx:0.320; Wy:0.340 |
| White Variation : |
1.25 (Typ.)(9 points) |
| Sunlight Readable : |
N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| TM240160XCFWGRA |
Tianma |
2.2" |
240×160 |
| TM128128F6CCWGWC1 |
Tianma |
1.44" |
128×128 |
| TM12864G3CCWGWA-1 |
Tianma |
2.4" |
128×64 |
| TM050XYSP02 |
Tianma |
5.0" |
540×960 |
| TM050JYHN11-00 |
Tianma |
5.0" |
720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Product Tags:
|
|

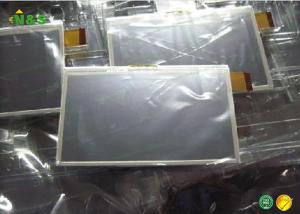

TM043NBH01 4.3 inch 480×272 anti glare lcd screen with 95.04×53.856 mm Active Area Images
|
