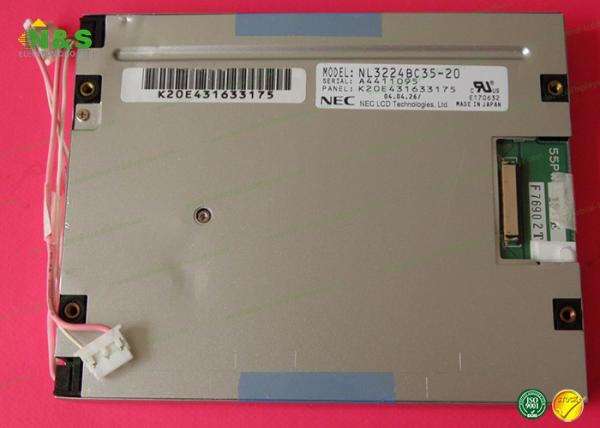

NL3224BC35-20 5.5 inch lcd display tft LCM 320×240 Normally White

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

NL3224BC35-20 5.5 inch lcd display tft LCM 320×240 Normally White

Brand Name : NEC

Model Number : NL3224BC35-20

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 5.5 inch

Resolution : 320(RGB)×240 , QVGA

Display Mode : TN, Normally White, Transmissive

Active Area : 111.36×83.52 mm

Outline : 134×104.5×13 mm

Contact Now

NL3224BC35-20 NEC LCD Panell NLT NLT 5.5 inch LCM 320×240 Normally White

NL3224BC35-20 Information

Panel Size :5.5 inch
Dot Resolution :320(RGB)×240 (QVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :72 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.116×0.348 mm (H×V)
Pixel Pitch :0.348×0.348 mm (H×V)
Weight :210/220g (Typ./Max.)
Surface :Antiglare, Hard coating (3H), Antireflection
Active Area :111.36×83.52 mm (H×V)
Bezel Area :116.4×88.5 mm (H×V)
Outline Dimension :134×104.5 mm (H×V)
Outline Depth :12.5±0.5 mm
Holes & Brackets :Rear mounting holes (4-M3)
Landscape or Portrait :Landscape type
Touch Panel :Without
Display Mode :TN, Normally White, Transmissive
Brightness :400 cd/m² (Typ.)
Contrast Ratio :400 : 1 (Typ.) (Transmissive)
Display Color :262K (6-bit)
Color Gamut :50% NTSC (CIE1931)
Response Time :5/25 (Typ.)(Tr/Td)
Viewing Angle :55/55/50/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :12 o'clock
White color Chromaticity :Wx:0.305; Wy:0.330
White Variation :1.25/1.35 (Typ./Max.)(5 points)
Sunlight Readable :N


Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.

Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5.Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

Here comes our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
ED312TT2E Ink31.2"2560×1440
ES133TE1E Ink13.3"2200×1650
ES133TT2E Ink13.3"2200×1650
ED133TT1E Ink13.3"2200×1650

Pls contact to us for more stock information: salespm@nselectronic.com.hk
