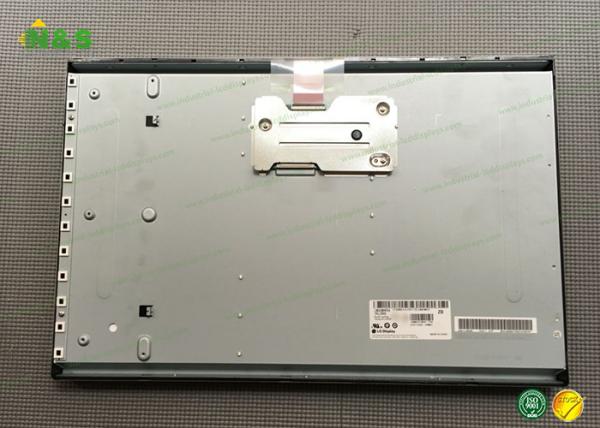

LM220WE4-SLB1 LG LCD Panel LG Display 22.0 inch LCM 1680×1050 300 Normally Black
LM220WE4-SLB Specification
Panel Size :
| |
22.0 inch |
| Dot Resolution : |
1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : |
RGB Vertical Stripe |
| Pixel Density : |
90 PPI |
| Aspect Ratio : |
16:10 (H:V) |
| Form Factor : |
Flat Rectangle Display |
| Dot Pitch : |
0.094×0.282 mm (H×V) |
| Pixel Pitch : |
0.282×0.282 mm (H×V) |
| Weight : |
2.37/2.49Kgs (Typ./Max.) |
| Surface : |
Antiglare, Hard coating (3H) |
| Active Area : |
473.76×296.1 mm (H×V) |
| Bezel Area : |
477.7×300.1 mm (H×V) |
| Outline Dimension : |
497.7×320.1 mm (H×V) |
| Outline Depth : |
35.7 (Typ.) mm |
| Holes & Brackets : |
Side mounting holes (9-M3) |
| Landscape or Portrait : |
Landscape type |
| Touch Panel : |
Without |
Display Mode :
| |
IPS, Normally Black, Transmissive |
| Brightness : |
300 cd/m² (Typ.) |
| Contrast Ratio : |
1000 : 1 (Typ.) (Transmissive) |
| Display Color : |
16.7M (8-bit) |
| Response Time : |
5.5/6.5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| Viewing Angle : |
89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : |
Symmetry |
| White color Chromaticity : |
Wx:0.313; Wy:0.329 |
| White Variation : |
1.33 (Max.)(9 points) |
| Sunlight Readable : |
N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
