20.1 inch LM201U04-SL02 LG. LCD Normally Black with 408×306 mm Active Area
Product Information:
| Panel Size : | 20.1 inch |
|---|
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
|---|
| Pixel Configuration : | RGB Vertical Stripe |
|---|
| Pixel Density : | 99 PPI |
|---|
| Aspect Ratio : | 4:3 (H:V) |
|---|
| Form Factor : | Flat Rectangle Display |
|---|
| Dot Pitch : | 0.085×0.255 mm (H×V) |
|---|
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
|---|
| Weight : | 3.20Kgs (Typ.) |
|---|
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
|---|
| Active Area : | 408×306 mm (H×V) |
|---|
| Bezel Area : | 413.0×311.0 mm (H×V) |
|---|
| Outline Dimension : | 432×331.5 mm (H×V) |
|---|
| Outline Depth : | 17.4/25.5 (Typ./Max.) mm |
|---|
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
|---|
| Landscape or Portrait : | Landscape type |
|---|
| Touch Panel : | Without |
|---|
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
| Display Mode : | S-IPS, Normally Black, Transmissive |
|---|
| Brightness : | 300 cd/m² (Typ.) |
|---|
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
|---|
| Display Color : | 16.7M (8-bit) |
|---|
| Color Gamut : | 72% NTSC (CIE1931) |
|---|
| Response Time : | 7/9 (Typ.)(Tr/Td); 12 (Typ.)(G to G) |
|---|
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
|---|
| Viewing Direction : | Symmetry |
|---|
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
|---|
| White Variation : | 1.39 (Max.)(9 points) |
|---|
| Sunlight Readable : | N |
|---|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500M01-SH02 | LG Display | 5.0" | 540×960 |
| LH500WX5-SH01 | LG Display | 5.0" | 720×1280 |
| LH500WX9-SH01 | LG Display | 5.0" | 720×1280 |
| LH550WX1-SH03 | LG Display | 5.5" | 720×1280 |
| LC550DUK-SGK2 | LG Display | 55" | 1920×1080 |
| LH400WV8-SH01 | LG Display | 4.0" | 480×800 |
| LH500WF3-SH01 | LG Display | 5.0" | 1080×1920 |
| LC550DPY-SHA1 | LG Display | 55" | 1920×1080 |
| LC420DUJ-FFE2 | LG Display | 42" | 1920×1080 |
| LH470WX3-SH05 | LG Display | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

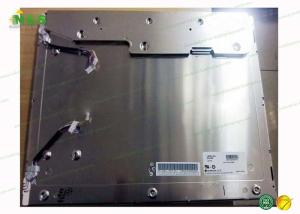

LM201U04-SL02 Picture
