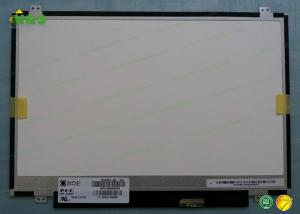

HB140WX1-50 14.0 inch 1366(RGB)×768 , WXGA Normally White

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

HB140WX1-50 14.0 inch 1366(RGB)×768 , WXGA Normally White

Brand Name : BOE

Model Number : HB140WX1-500

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Contrast Ratio : 600:1 (Typ.)

Panel Size : 14.0 inch

Resolution : 1366(RGB)×768 , WXGA

Surface : Hard coating (3H)

Frequency : 60Hz

Signal Interface : LVDS (1 ch, 6-bit) , 40 pins

Contact Now

HB140WX1-50 14.0 inch 1366(RGB)×768 , WXGA Normally White

HB140WX1-500 Information:
Panel Size : 14.0 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 112 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0755×0.2265 mm (H×V)
Pixel Pitch : 0.2265×0.2265 mm (H×V)
Weight : 290g (Max.)
Surface : Hard coating (3H)
Active Area : 309.399×173.952 mm (H×V)
Outline Dimension : 320.9×187.6 mm (H×V)
Outline Depth : 3.0 (Max.) mm
Shape Style : Slim (PCBA Flat, Depth ≤3.2mm)
Holes & Brackets : Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait : Landscape type
Touch Panel : Without

Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 12 (Typ.)(Tr+Td)
Viewing Angle : 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.54 (Max.)(5/13 points)
Sunlight Readable : N


Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
MV236FHB-N10 BOE 24.0" 1920×1080
HR270QH3-100 BOE 27.0" 2560×1440
BF045WVQ-401 BOE 4.5" 480×854
BV055HDE-N40 BOE 5.5" 720×1280
TV080WXB-NV0 BOE 8.0" 800×1280
AV080WVB-NW2 BOE 8.0" 800×480
