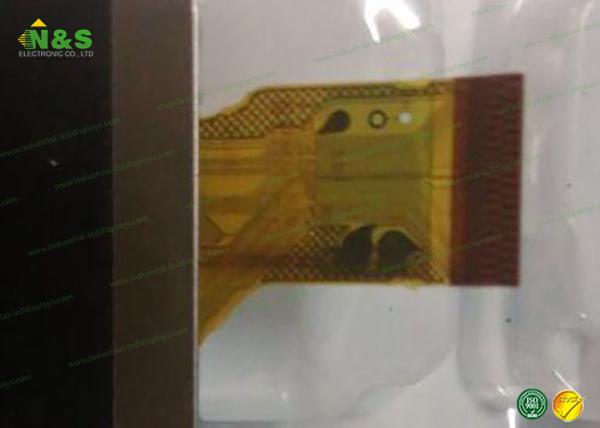

Original and high brightness LM300WQ5-SLA1 LG LCD Panel with 2560*1600, 30.0 inch

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

Original and high brightness LM300WQ5-SLA1 LG LCD Panel with 2560*1600, 30.0 inch

  • 1
  • 2
  • 3

Brand Name : LG LCD Panel

Model Number : LM300WQ5-SLA1

Certification : ISO9001

Place of Origin : Japan/Taiwan

MOQ : 1 piece

Payment Terms : T/T, Western Union,paypal

Supply Ability : 1000 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , Panel

Response Time : 6/6 (Typ.)(Tr/Td); 7 (Typ.)(G to G)

Signal Interface : LVDS (4 ch, 10-bit) , 92 pins

Resolution : 2560(RGB)×1600 , WQXGA

Surface : Antiglare (Haze 13%), Hard coating (3H)

Panel Size : 30.0 inch

Display Colors : 1.07B (10-bit) , CIE1931 102%

Brightness : 370 cd/m² (Typ.)

Contact Now

Original and high brightness LM300WQ5-SLA1 LG LCD Panel with 2560*1600, 30.0 inch


Mechanical Features

Panel Size : 3.5 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 115 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.073×0.219 mm (H×V)
Pixel Pitch : 0.219×0.219 mm (H×V)
Active Area : 70.08×52.56 mm (H×V)
Outline Dimension : 76.9×63.9 mm (H×V)
Outline Depth : 1.47±0.2 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 350 : 1 (Typ.) (Transmissive)
Display Color : 16.7M ()
Color Gamut : 60% NTSC (CIE1931)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 55/55/45/50 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
Transmissivity : 7.4% (Typ.)(with Polarizer)

more details:

Panel Brand : ChiHsin
Panel Model : LQ035NC121
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 3.5 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 70.08×52.56 mm
Outline : 76.9×63.9×1.47 mm
Glass Depth : 0.50+0.50 mm
Transmissivity : 7.4% (Typ.)(with Polarizer)
Contrast Ratio : 350:1 (Typ.)
Display Colors : 16.7M , CIE1931 60%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 55/55/45/50 (Typ.)(CR≥10) (L/R/U/D)
Signal Interface : Parallel RGB (1 ch, 8-bit) + SPI , 54 pins
Input Voltage : 3.3V (Typ.)(VCC)

Signal Category : TTL
Signal Class : Parallel RGB (1 ch, 8-bit) + SPI
Input Voltage for Panel : 3.3V (Typ.)(VCC)
Input Current for Panel : 8.6mA (Typ.)(ICC)
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Type : FPC

100% Tested Before Shipping.

We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 3.5-20inches is between the various industrial screen, They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.

We sale TFT LCD module for the PDA, GPS, game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LH550WF3-SH01 LG Display 5.5" 1080×1920
LC320DXY-SHA3 LG Display 31.5" 1366×768
LC490EQL-SHA2 LG Display 49" 3840×2160
LC430EQL-SHA2 LG Display 43" 3840×2160
LC430DUY-SHA2 LG Display 43" 1920×1080
LC550EGY-SHM2 LG Display 55" 3840×2160

Original and high brightness LM300WQ5-SLA1 LG LCD Panel with 2560*1600, 30.0 inchOriginal and high brightness LM300WQ5-SLA1 LG LCD Panel with 2560*1600, 30.0 inch
