350 cd/m² and 680g Samsung LCD Panel LTM184HL01 with 18.4 inch, 1920*1080
Mechanical Features
| Panel Size : | 18.4 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 680g (Max.) |
| Surface : | Antiglare (Haze 1%), Antireflection |
| Active Area : | 408.96×230.04 mm (H×V) |
| Outline Dimension : | 443.4×266.5 mm (H×V) |
| Outline Depth : | 4.3 (Max.) mm |
| Holes & Brackets : | Face mounting holes (10 pcs) on left, right, up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
General Features
Panel Brand : SAMSUNG
Panel Model : LTM184HL01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 18.4 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : PLS, Normally Black, Transmissive
Active Area : 408.96×230.04 mm
Outline : 443.4×266.5×4.3 mm
Surface : Antiglare (Haze 1%), Antireflection
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 72%
Response Time : 16 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 12S6P WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 5.0V (Typ.)
SAMSUNG LTM184HL01 Optical Features
| Display Mode : | PLS, Normally Black, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.60 (Max.)(11 points) |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
| AMS395GB04 | Samsung | 4.0" | 360×640 |
| AMS410GC01-0 | Samsung | 4.1" | 480×800 |
| AMS370FG | Samsung | 3.7" | 480×800 |
| AMS465GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS427GL34-1 | Samsung | 4.3" | 480×800 |
| AMS767KC06 | Samsung | 7.7" | 1280×800 |
| AMS465GS01 | Samsung | 4.7" | 720×1280 |
| AMS529HA01 | Samsung | 5.3" | 800×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Step1 | Send us inquiry or leave us message online, indicating us following information |
| | 1. LCD screen model NO., quantities, and colors you want to order |
| | 2. your name, email and address |
| | 3. the payment and shipment method which are convenient to you |
| | 4. anything else you would like to know |
| Step 2 | We will get back to you with our best price and the shipping cost very quickly, and answer all your concerned questions in details |
| Step 3 | After order confirmed, you can choose to pay the money by T/T, Paypal, Western and then provide us your delivery address and phone number |
| Step 4 | Sit back and wait patiently. Goods will be shipped out within 3 days, we will send the tracking number to your email once shipped out. |
| Step 5 | After you receive the goods, please let us know if it is in good condition, and your suggestions are welcome. |

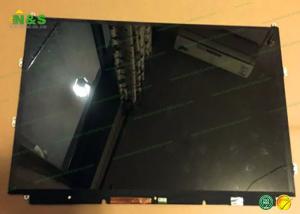

Details Pictures
