22.0 inch LTM220M3- L02 samsung lcd panel replacement 473.76×296.1 mm Active Area

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

22.0 inch LTM220M3- L02 samsung lcd panel replacement 473.76×296.1 mm Active Area

  • 1
  • 2
  • 3

Brand Name : Samsung LCD Panel

Model Number : LTM220M3-L02

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 22.0 inch

Resolution : 1680(RGB)×1050 , WSXGA+

Display Mode : S-PVA, Normally Black, Transmissive

Contrast Ratio : 1000:1 (Typ.)

Display Colors : 16.7M (8-bit) , CIE1931 92%

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)

Response Time : 16 (Typ.)(Tr+Td); 6 (Typ.)(G to G)

Frequency : 60Hz

Contact Now


22.0 inch LTM220M3- L02 samsung lcd panel replacement 473.76×296.1 mm Active Area

Key Specifications

Panel Brand :SAMSUNG
Panel Model :LTM220M3-L02
Panel Type :a-Si TFT-LCD , Panel
Panel Size :22.0 inch
Resolution :1680(RGB)×1050 , WSXGA+
Display Mode :S-PVA, Normally Black, Transmissive
Active Area :473.76×296.1 mm
Outline :497.8×320.1 mm
Surface :Antiglare (Haze 44%), Hard coating (3H)
Brightness :300 cd/m² (Typ.)
Contrast Ratio :1000:1 (Typ.)
Display Colors :16.7M (8-bit) , CIE1931 92%
Response Time :16 (Typ.)(Tr+Td); 6 (Typ.)(G to G)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :6 pcs CCFL
Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
Input Voltage :5.0V (Typ.)


SAMSUNG LTM220M3-L02 Optical Features

Display Mode :S-PVA, Normally Black, Transmissive
Brightness :300 cd/m² (Typ.)
Contrast Ratio :1000 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Color Gamut :92% NTSC (CIE1931)
Response Time :16 (Typ.)(Tr+Td); 6 (Typ.)(G to G)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :Wx:0.313; Wy:0.329
White Variation :1.33 (Max.)(9 points)


What’s your advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.

Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
AMS767KC04-1Samsung7.7"1280×800
AMS395GB04Samsung4.0"360×640
AMS410GC01-0Samsung4.1"480×800
AMS370FGSamsung3.7"480×800
AMS465GS16-1Samsung4.7"720×1280
AMS427GL34-1Samsung4.3"480×800
AMS767KC06Samsung7.7"1280×800
AMS465GS01Samsung4.7"720×1280
AMS529HA01Samsung5.3"800×1280
AMS397GE02Samsung4.0"480×800
AMS427GL03Samsung4.3"480×800

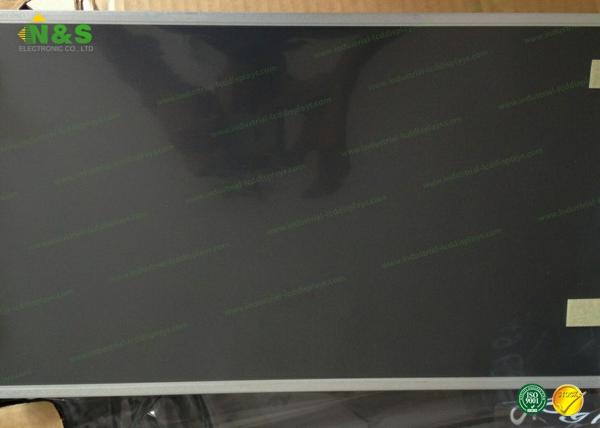

Details Pictures for Samsung LCD Panel LTM220M3-L02

22.0 inch LTM220M3- L02 samsung lcd panel replacement 473.76×296.1 mm Active Area

22.0 inch LTM220M3- L02 samsung lcd panel replacement 473.76×296.1 mm Active Area
