1024*768 High Brightness LP097X02-SLQ1 for 9.7 inch, Without Touch LG Display
Our Services :
1. Our Operation Orinciple:
1) Quality first, customer supreme.
2) Integrity management, credit highest.
LG Display LP097X02-SLQ1 Mechanical Features:
| Panel Size : | 9.7 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 132 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.064×0.192 mm (H×V) |
| Pixel Pitch : | 0.192×0.192 mm (H×V) |
| Weight : | 143g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Active Area : | 196.608×147.456 mm (H×V) |
| Bezel Area : | 201.01×151.86 mm (H×V) |
| Outline Dimension : | 210.32×164.37 mm (H×V) |
| Outline Depth : | 2.88/5.22 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Specifications :
Panel Brand : LG Display
Panel Model : LP097X02-SLQ1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 9.7 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : H-IPS, Normally Black, Transmissive
Active Area : 196.608×147.456 mm
Outline : 210.32×164.37×5.22 mm
Surface : Glare (Haze 0%), Hard coating (2H), Antireflection
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6S6P WLED Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 30 pins
Input Voltage : 3.3V (Typ.)
LG Display LP097X02-SLQ1 Optical Features:
| Display Mode : | H-IPS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.309; Wy:0.317 |
| White Variation : | 1.40/1.60 (Typ./Max.)(17 points) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
| LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
| LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
| LH300Q02-SD01 | LG Display | 3.0" | 240×320 |
Our company:
We have a good reputation in the trading of lcd panel and have built up a wide and stable relationship with agency and distributors of lcd panel.
Our products have won praise from customers worldwide. We not only offer our own stock, but also help clients to search the parts in China market.
We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the panels.
We would appreciate the opportunity of serving your component needs. You will be pleased to do business with us for our best services and high quality components.
Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Product Tags:
|
|

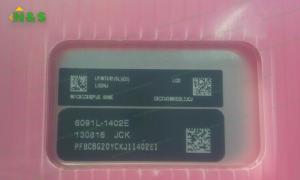

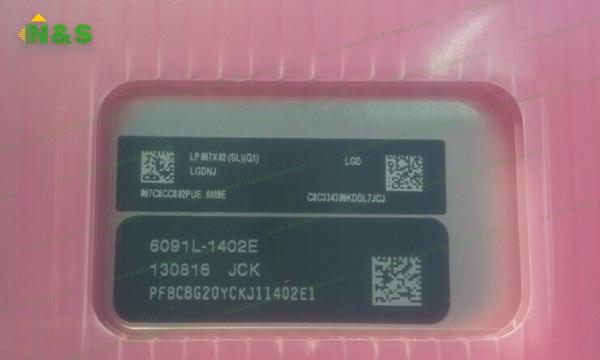

1024*768 High Brightness LP097X02-SLQ1 for 9.7 inch, Without Touch LG Display Images
|
