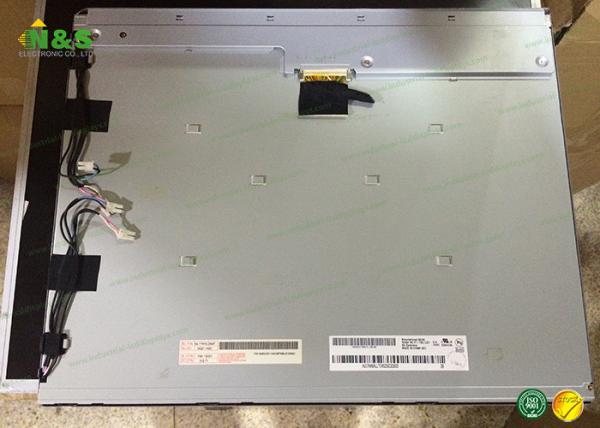

17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm

Brand Name : AUO

Model Number : M170EG01 VA

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 17.0 inch

Resolution : 1280(RGB)×1024 , SXGA

Active Area : 337.92×270.336 mm

Outline : 358.5×296.5×17.5 mm

Surface : Antiglare, Hard coating (3H)

Contrast Ratio : 700:1 (Typ.)

Contact Now

17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm

M170EG01 VA DETAIL

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 2.25Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.6×274.0 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 17.0±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode :17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm 17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 6/2 (Typ.)(Tr/Td)
Viewing Angle : 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max)(9 points)
Sunlight Readable : N
Vertical Frequency : 60Hz
Reverse Scan :17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm No
Total Power Consumption :17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm 25.8 W(Typ.)

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
H163QLN01.1 AUO 1.63" 320×320
H497TLB01 AUO 5.0" 720×1280
H497TLB01.0 AUO 5.0" 720×1280
M350DVR01.1 CELL AUO 35.0" 2560×1080
T320HVN02.1 CELL AUO 31.5" 1920×1080
M270DAN01.1 CELL AUO 27.0" 2560×1440
T500QVN03.3 CELL AUO 50" 3840×2160
T500QVN03.0 CELL AUO 50" 3840×2160
H497DAN02.1 AUO 5.0" 1080×1920
H546DAN07.3 AUO 5.5" 1080×1920

Pls contact to us for more stock information: salespm@nselectronic.com.hk
