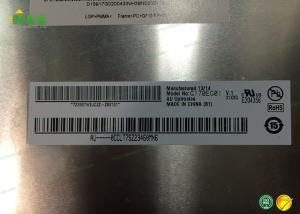

17.0 inch M170EG01 V1 AUO LCM with 337.92×270.336 mm Active Area

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

17.0 inch M170EG01 V1 AUO LCM with 337.92×270.336 mm Active Area

Brand Name : AUO

Model Number : M170EG01 V1

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 17.0 inch

Resolution : 1280(RGB)×1024 , SXGA

Active Area : 337.92×270.336 mm

Outline : 358.5×296.5×17.5 mm

Brightness : 260 cd/m² (Typ.)

Response Time : 12/4 (Typ.)(Tr/Td)

Contact Now

17.0 inch M170EG01 V1 AUO LCM with 337.92×270.336 mm Active Area

M170EG01 V1 Information

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 1.90Kgs (Typ.)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.6×274.0 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 17.0±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness :17.0 inch M170EG01 V1 AUO LCM with 337.92×270.336 mm Active Area 260 cd/m² (Typ.)
Contrast Ratio : 450 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 12/4 (Typ.)(Tr/Td)
Viewing Angle : 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.25/1.33 (Typ./Max)(9 points)
Sunlight Readable : N
Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption :17.0 inch M170EG01 V1 AUO LCM with 337.92×270.336 mm Active Area 25.8 W(Typ.)


Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T320HVN02.1 CELL AUO 31.5" 1920×1080
M270DAN01.1 CELL AUO 27.0" 2560×1440
T500QVN03.3 CELL AUO 50" 3840×2160
T500QVN03.0 CELL AUO 50" 3840×2160
H497DAN02.1 AUO 5.0" 1080×1920
H546DAN07.3 AUO 5.5" 1080×1920
M270HVN02.3 CELL AUO 27.0" 1920×1080
M270HVN02.2 CELL AUO 27.0" 1920×1080
M270HVN02.1 CELL AUO 27.0" 1920×1080
M270DTN01.0 CELL AUO 27.0" 2560×1440
T320HVN05.7 CELL AUO 31.5" 1920×1080
